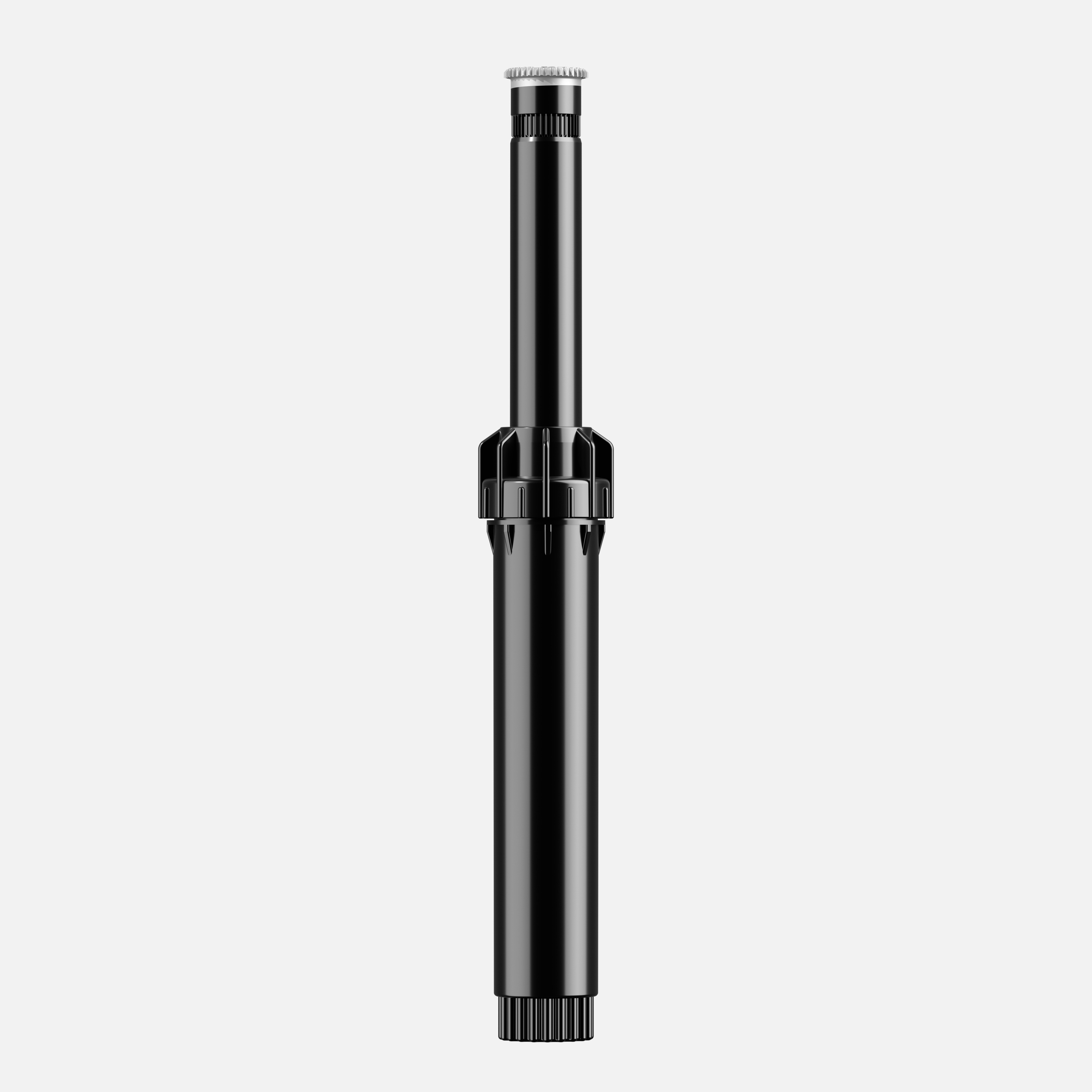

Dimensions
| Overall height | 18.4cm |
| Pop up height | 10cm |
| Exposure diameter | 3cm |
| Inlet size | 1/2" female thread |
Operating Specification
| Recommended pressure range | 1.0 ~ 4.8 bar |
| Radius | 0.9 - 5.8m |
| Connection | 1/2" female thread |
Features

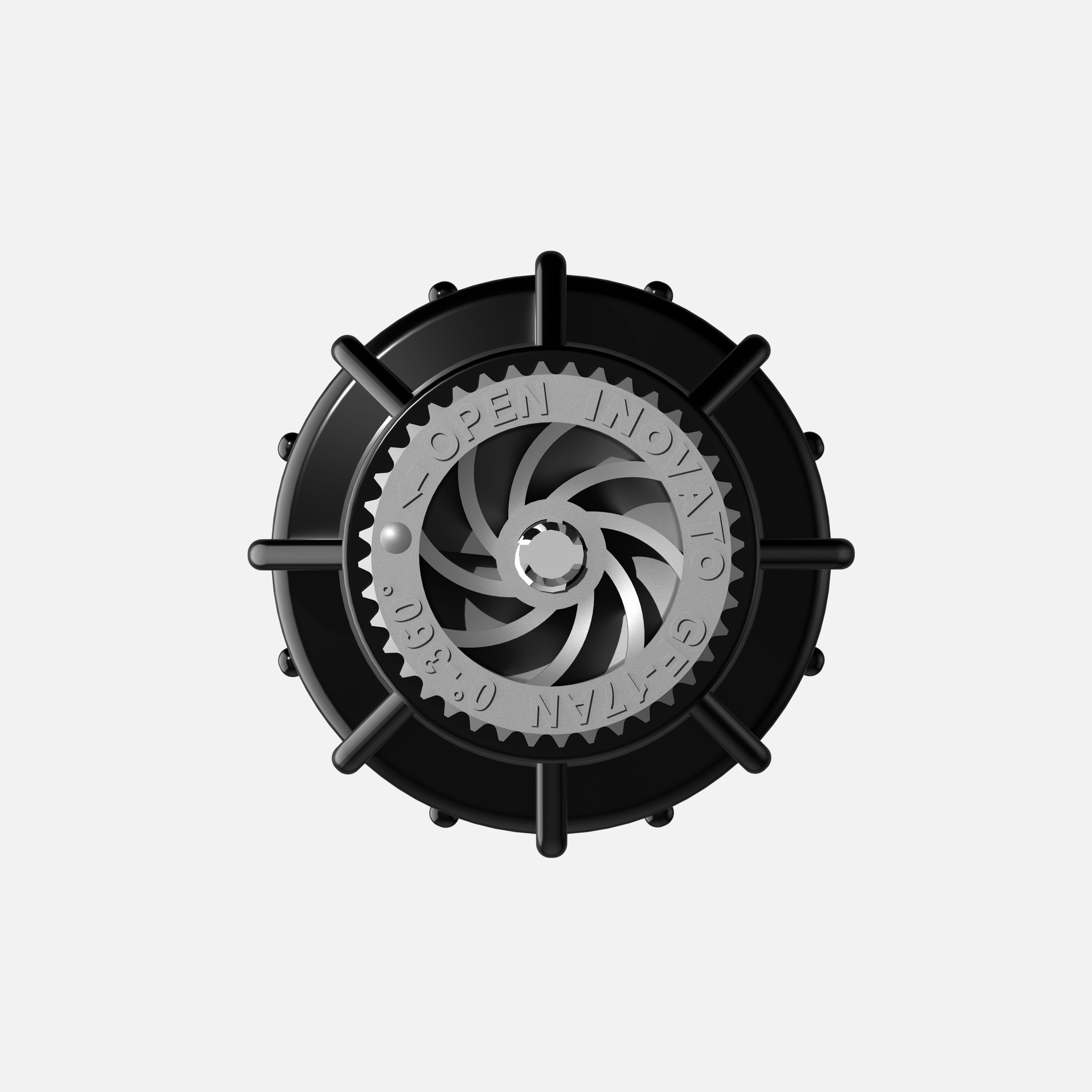

- Small exposed cover for more attractive landscapes
- Compact shape makes it more economical
- Pressure-activated wiper seal prevents excessive flow-by and water waste and keeps debris from entering upon retraction
- Constructed of durable materials including corrosion resistant stainless steel
- Male threaded riser to accept all NOVATO female nozzles
Factory Installed Options
- FN nozzles, RF nozzles
- Flush plug (large basket filter screen included)
- Large basket filter screen included for 4” and 6” models
Frequently Asked Questions
What are the physical dimensions of this sprinkler?
The sprinkler has an overall height of 18.4cm, a pop-up height of 10cm, and an exposure diameter of 3cm.
What is the recommended operating pressure and radius range?
The recommended operating pressure range is between 1.0 and 4.8 bar, which supports a watering radius of 0.9 to 5.8 meters.
How does the sprinkler prevent water waste?
It is designed with a pressure-activated wiper seal that prevents excessive flow-by and water waste. This seal also stops debris from entering the body during retraction.
What type of inlet connection does it support?
It features a standard 1/2" female thread inlet connection for easy installation.
Can I use other nozzles with this riser?
Yes, the male threaded riser is designed to accept all NOVATO female nozzles, as well as optional factory-installed FN and RF nozzles.
