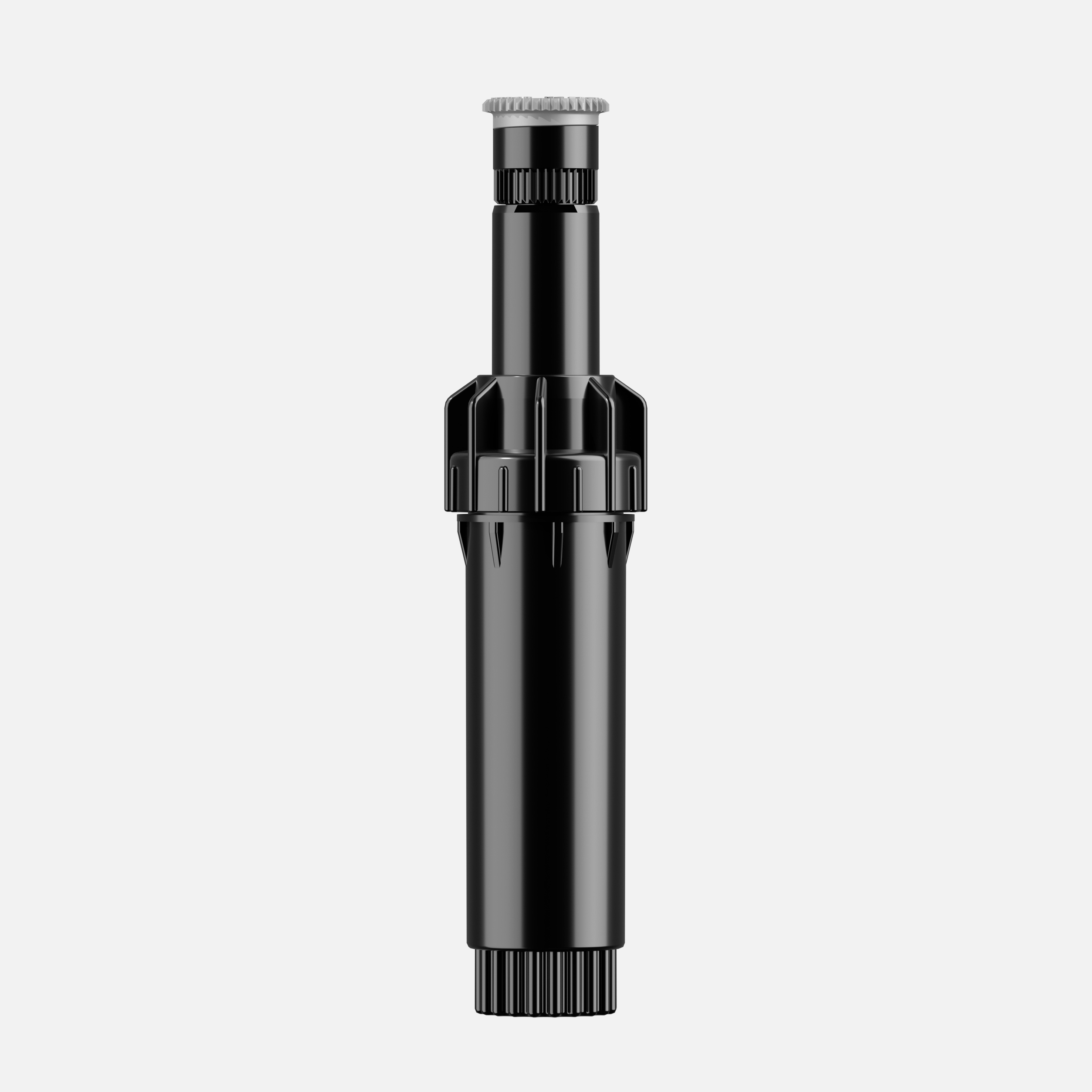

INOVATO GF02 Sprinklers & Accessories - China Suppliers & Factory for Turfgrass, Shrubs, and Garden Applications
Dimensions
- Overall height 12.7cm
- Pop up height 5cm
- Exposure diameter 3cm
- Inlet size 1/2" female thread
Operating Specification
- Recommended pressure range 1.0 ~ 4.8 bar
- Radius 0.9 - 5.8m
- Connection 1/2" female thread
Features
- Small exposed cover for more attractive landscapes
- Compact shape makes it more economical
- Pressure-activated wiper seal prevents excessive flow-by and water waste and keeps debris from entering upon retraction
- Constructed of durable materials including corrosion resistant stainless steel
- Male threaded riser to accept all INOVATO female nozzles
Factory Installed Options
- FN nozzles
- Flush plug (large basket filter screen not included)
Frequently Asked Questions
What are the physical dimensions of the pop-up sprinkler?
The sprinkler has an overall height of 12.7cm, a pop-up height of 5cm, and an exposure diameter of 3cm.
What is the connection and inlet size?
The sprinkler is equipped with a 1/2" female thread inlet connection.
What is the recommended operating pressure range?
The recommended operating pressure range for optimal performance is 1.0 to 4.8 bar.
What is the spray radius range of this sprinkler?
The sprinkler offers a coverage radius ranging from 0.9 meters to 5.8 meters.
What materials are used to ensure durability?
It is constructed from highly durable materials, including corrosion-resistant stainless steel.
What factory options are available for this model?
Factory-installed options include FN nozzles and a flush plug (large basket filter screen is not included).
