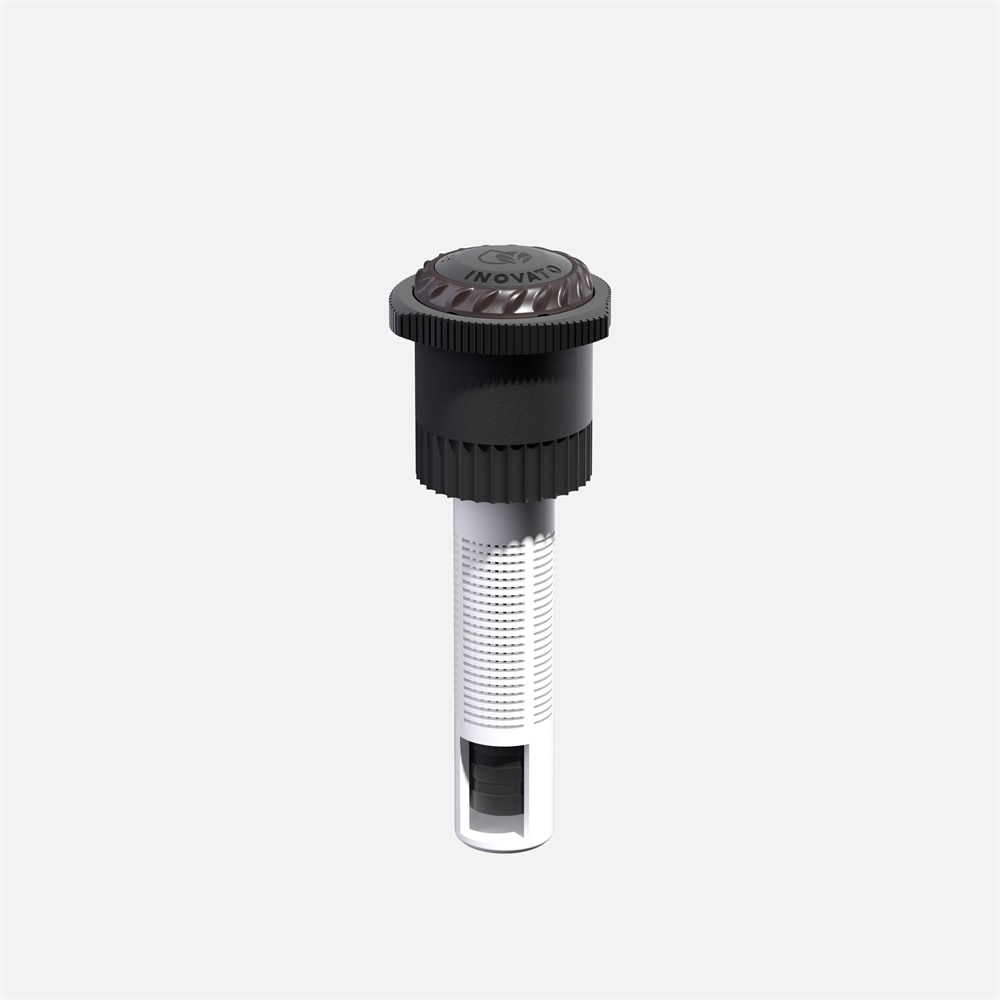

INOVATO RF303 Nozzles - 210° to 270° Adjustable Arc for Turfgrass - China Suppliers & Factory

,

Brand: INOVATO

,

Product Model: RF303

,

Description: The RF303 Nozzle features a unique adjustable arc that ranges from 210° to 270°, making it an ideal choice for efficient irrigation. Designed in a sleek brown finish, this nozzle is perfect for enhancing your watering system.

,

Applications: This versatile RF303 Nozzle is expertly crafted for use on turfgrass, shrubs, gardens, and more, ensuring optimal watering for various plants. As a leading supplier based in China, our factory guarantees high-quality products that meet your gardening needs.

,
    Contact us
    Product Details

    Dimensions

    • Diameter:25.7 mm
    • Overall height:70.7 mm
    Nozzle Dimensions Diagram

    Features

    • Radius can be reduced up to 25% on all models
    • Color-coded for easy identification
    • Removable filter screen prevents large objections from clogging nozzle
    • Low precipitation rate
    • Wind-resistant multi-stream technology
    • RF303 nozzle can be adjusted in the angle range of 210° to 270°
    • Double-pop feature protects the nozzle from external debris

    Operating Specification

    • Arc:210° to 270°
    • Recommended working pressure:2.8 bar or 40 PSI
    • Minimum working pressure:1.7 bar or 25 PSI

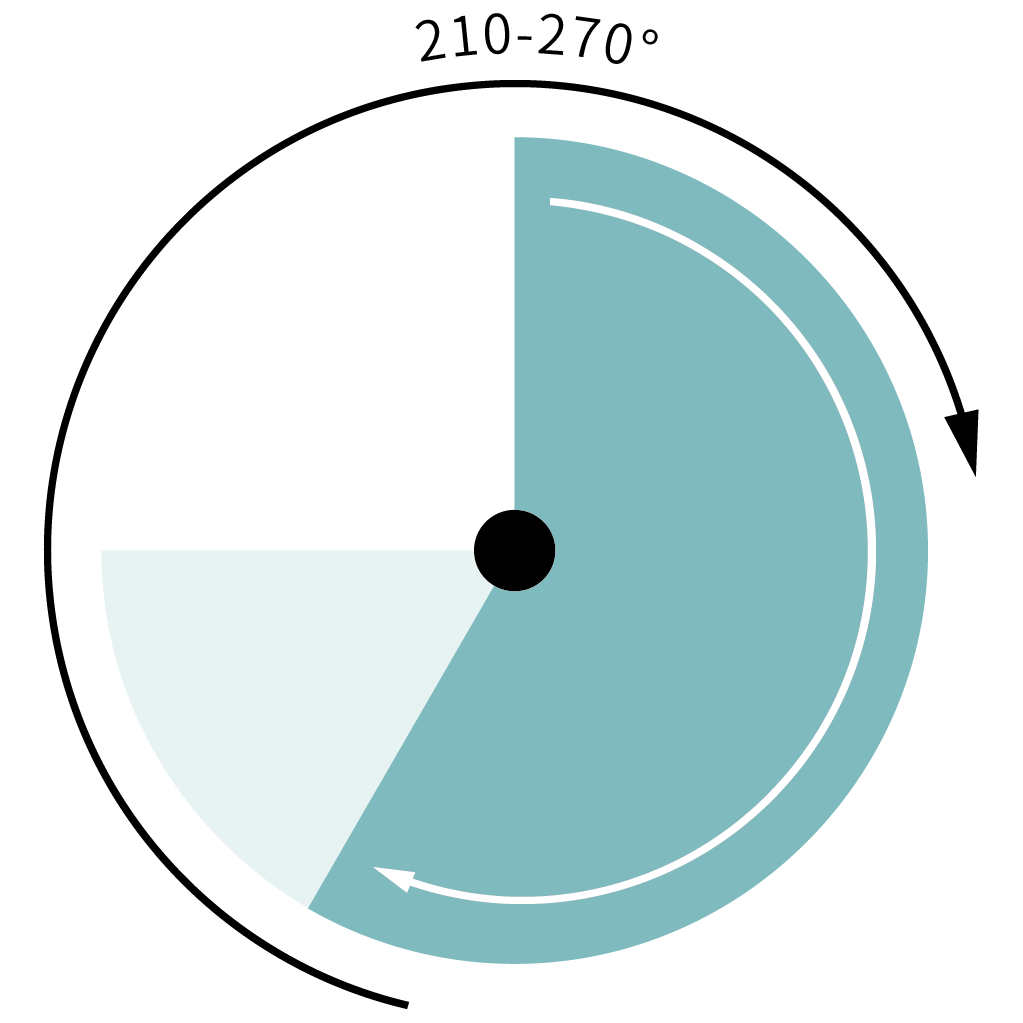

    210-270° Operating Arc Diagram

    Frequently Asked Questions

    What are the physical dimensions of the nozzle?

    The nozzle has a diameter of 25.7 mm and an overall height of 70.7 mm.

    What is the adjustable arc range for the RF303 model?

    The RF303 nozzle features an adjustable arc range from 210° to 270°.

    What is the recommended operating pressure for this nozzle?

    The recommended working pressure is 2.8 bar (40 PSI), with a minimum operating pressure of 1.7 bar (25 PSI).

    How much can the radius be reduced on these models?

    The radius can be reduced by up to 25% on all models.

    How does the nozzle protect itself from clogging and debris?

    It features a removable filter screen that prevents large objects from clogging the nozzle, along with a double-pop feature that protects the nozzle from external debris.
