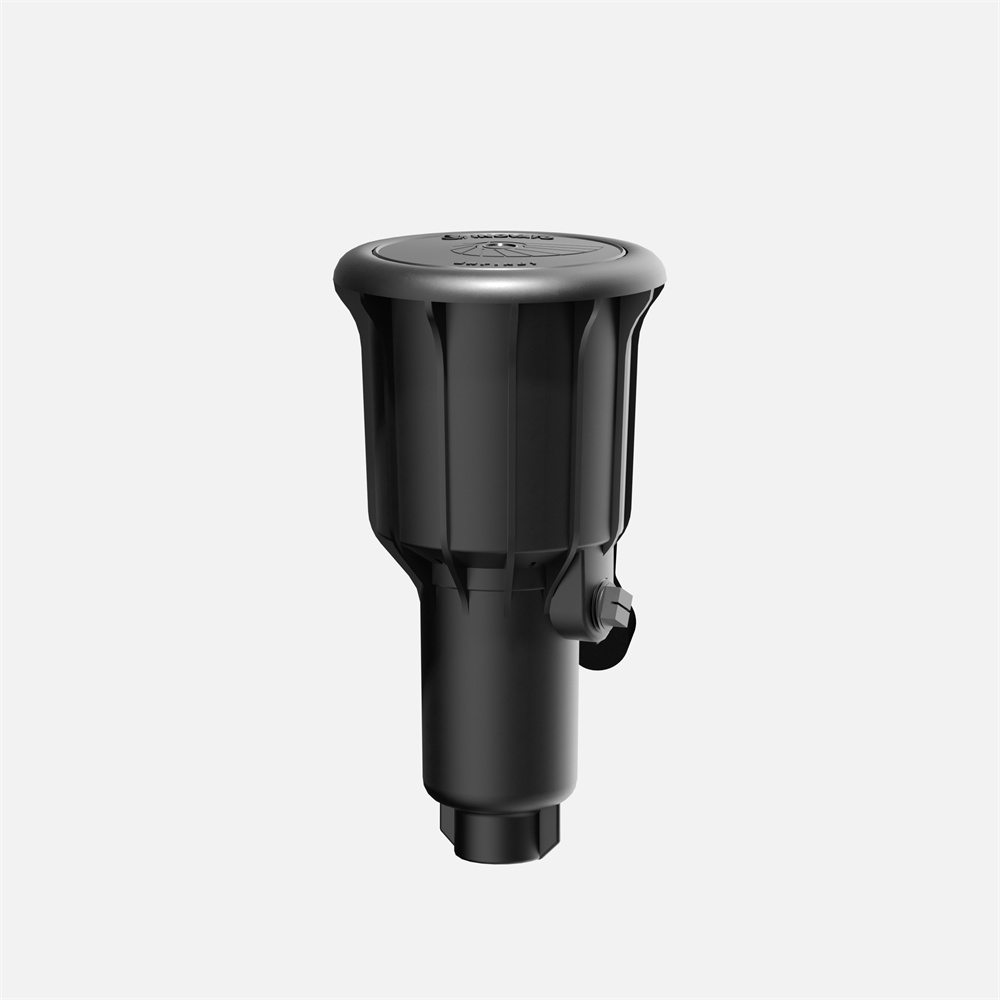

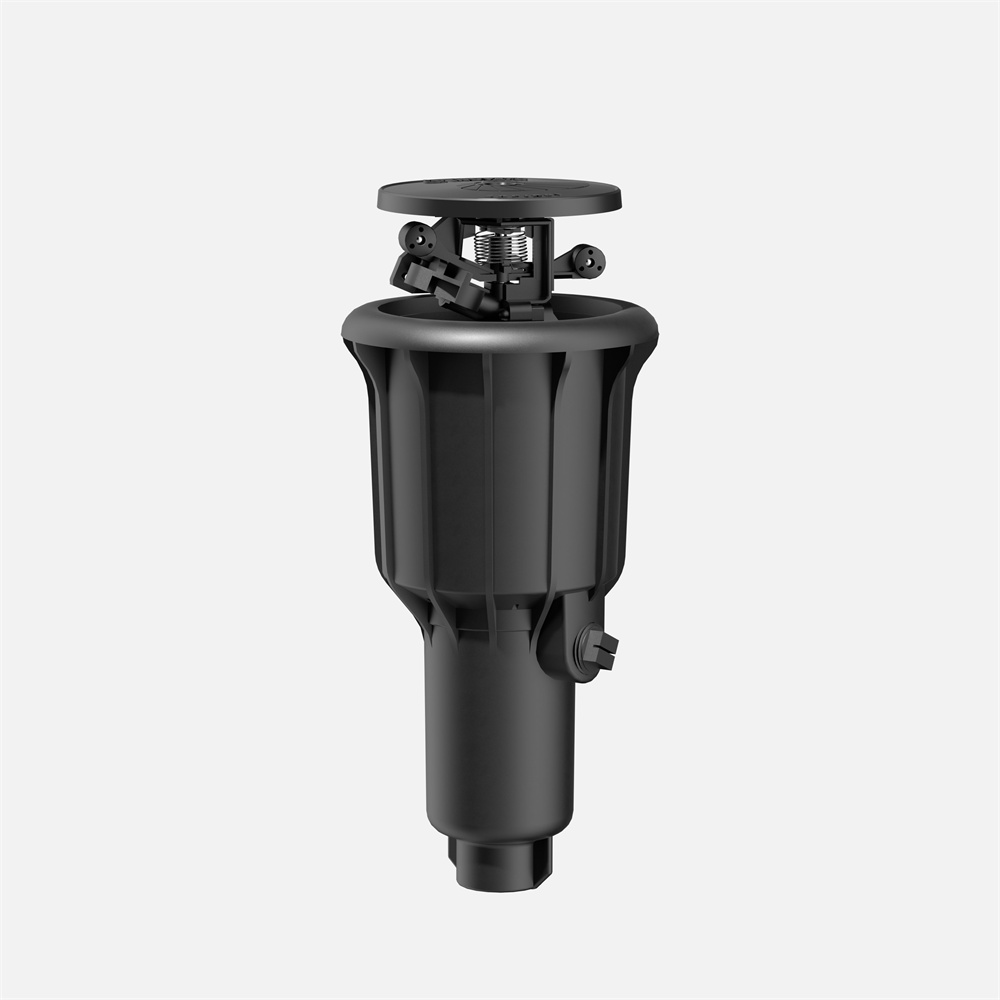

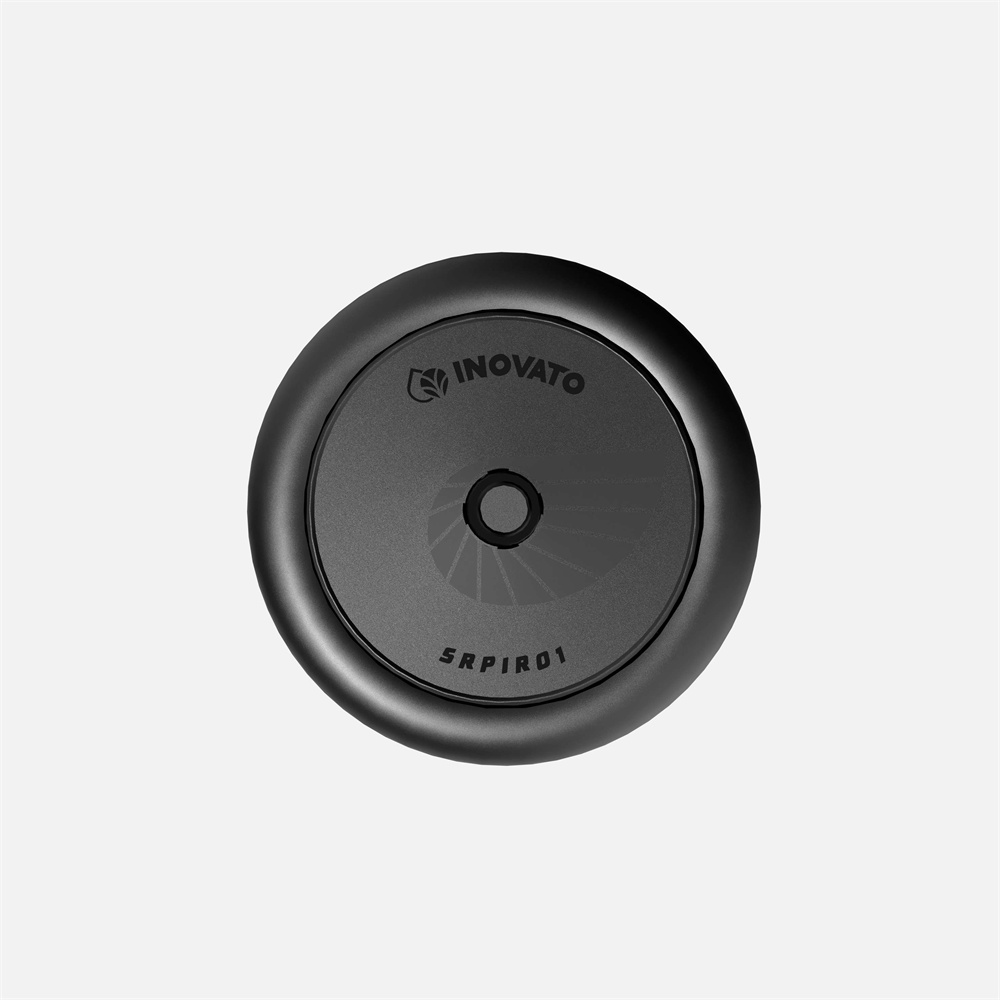

SRPIR01
Pop-up Impact Sprinkler Sprinklers & Accessories
Features
Reinforced lmpact-Resistant Structure with Heavy-duty plastic case and Ribbed
reinforcement design
Double-weighted arm for controlled rotation
Distance-regulating diffuser pin
Side inlet installation is not recommended in freezing climates
Operating Specifications
Recommend working pressure: up to 5.5 bar, 80 PSI
Operating pressure: up to 10 bar, 145 PSI
Performance Data
|
Nozzle Size |
mm |
4.0 (black) |
|
Pre. |
bar |
2 2.5 3 3.5 4 4.5 |
|
Flow Rate |
m³/h |
0.79 0.89 0.98 1.06 1.14 1.21 |
|
Flow Rate |
L/m |
13.17 14.83 16.33 17.67 19 20.17 |
|
Rad. |
m |
10.5 11.5 12 12.5 13 13.5 |
*Performance table prepared under laboratory conditions
*For windy conditions use closer spacing
*The 4.0mm black nozzle is the factory standard nozzle. For more nozzle options (2.8mm, 3.0mm, 3.2mm, 3.5mm please ask our sales)

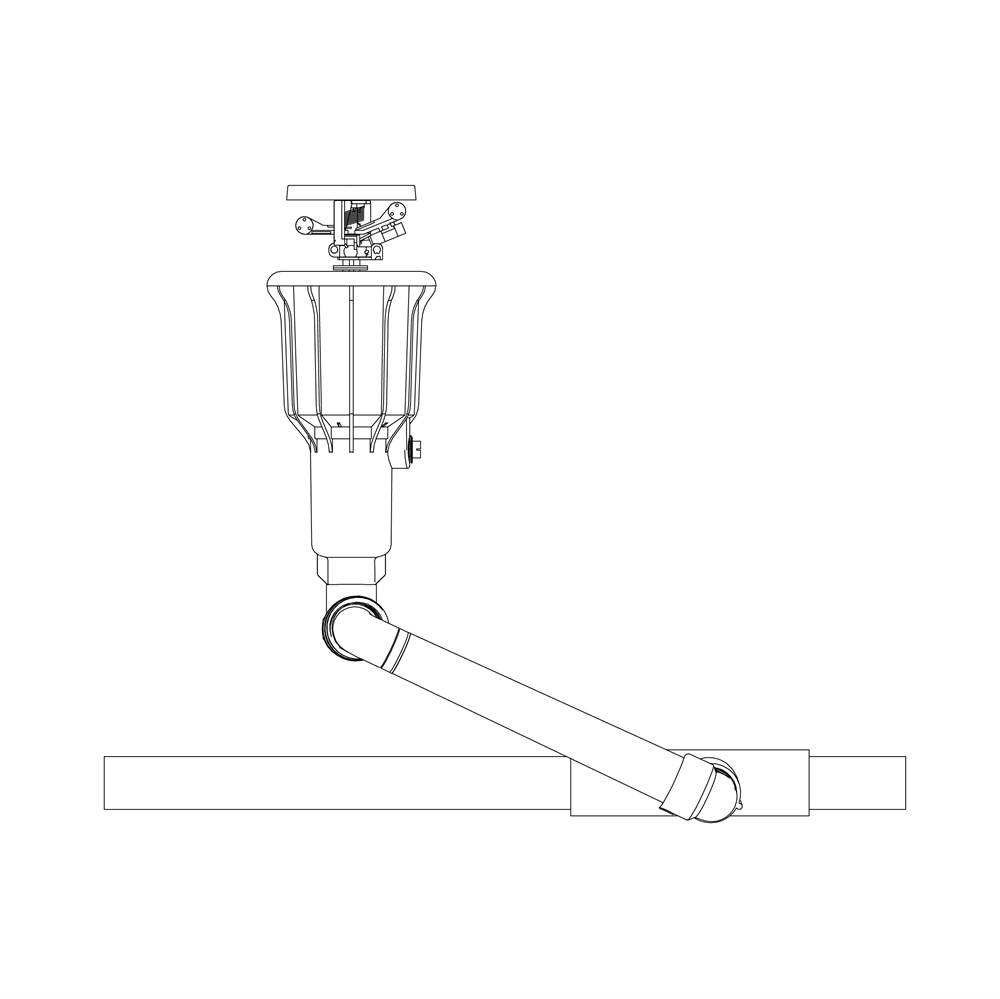

Recommendation Installation
