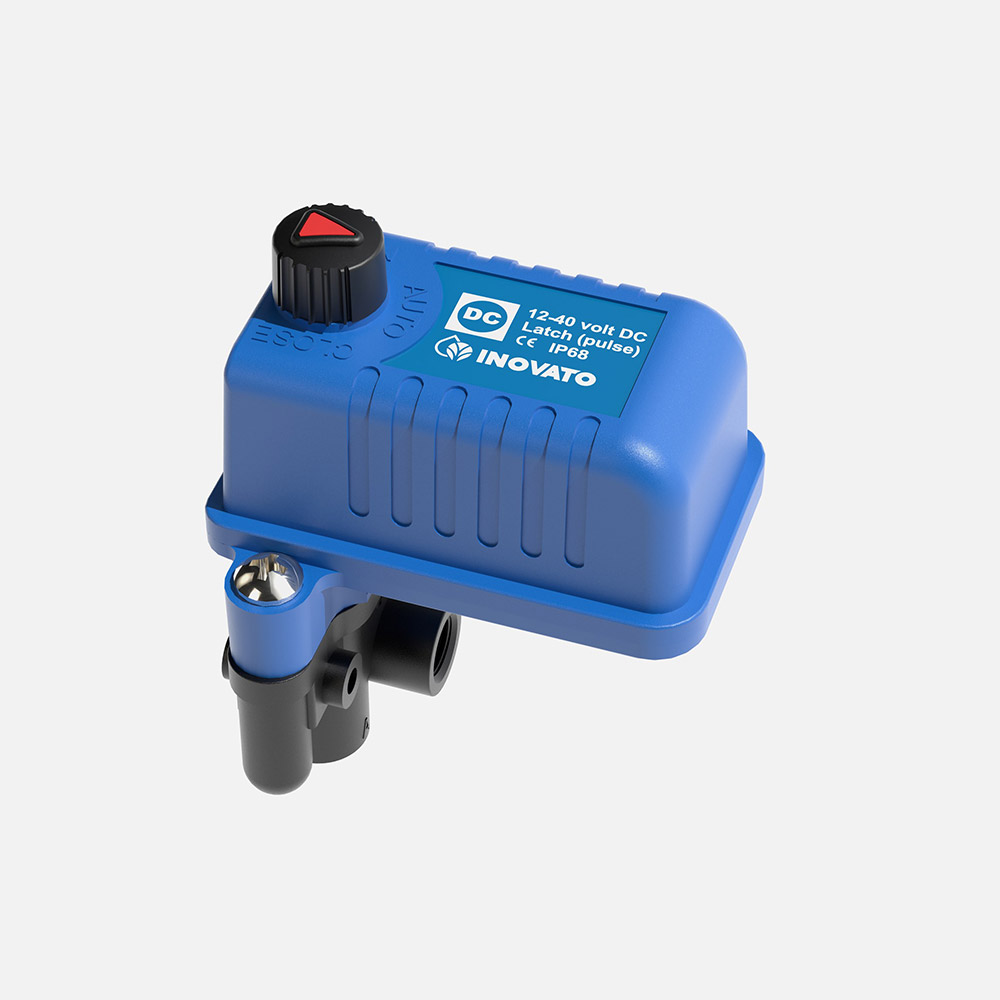

China Suppliers Factory DC-Latching Mechanical Pulse Solenoid 3W-12-40VDC by INOVATO
Models
3W-12-40VDC
| Product Identification | 9DS |
| Port Thread | 1/8” BSPT |
| Pressure | 0.5-10 Bar |
| Material | Nylon reinforced |
| Sealed Material | NBR |
| Fluid TEMP | ≤60℃ |
| Voltage Range | 12-40VDC |
| In Rush Current | >80mSec |
| Holding Current | 2200-4700μF |
Features
-
Can choose normally open or closed
-
Three-way equips manual reset: turn on, turn off, and auto
-
Constant Voltage: 12VDC-40VDC
-
Protection Class: IP-68
-
Pulse Voltage: 12-40V DC (for pulse solenoid)
Frequently Asked Questions
What is the voltage range for the 3W-12-40VDC model?
The valve supports a constant voltage and pulse voltage range of 12VDC to 40VDC, making it suitable for various electrical setups.
What materials are used for the valve body and seal?
The valve body is constructed from Nylon reinforced material, and the seal is made from NBR (Nitrile Butadiene Rubber) to ensure durability and leak prevention.
Can this solenoid valve be used in wet or outdoor environments?
Yes, the valve has an IP-68 protection class rating, which ensures high resistance to dust and water penetration, making it ideal for harsh environments.
What are the pressure and fluid temperature limits?
The valve operates within a pressure range of 0.5 to 10 Bar and is designed to handle fluid temperatures up to 60℃ (≤60℃).
Does the 3W-12-40VDC valve support manual operation?
Yes, the three-way configuration is equipped with a manual reset function that allows you to switch between turn on, turn off, and auto settings.
What is the port thread size and type for this model?
The model 9DS features a standard 1/8” BSPT port thread for secure connections.
