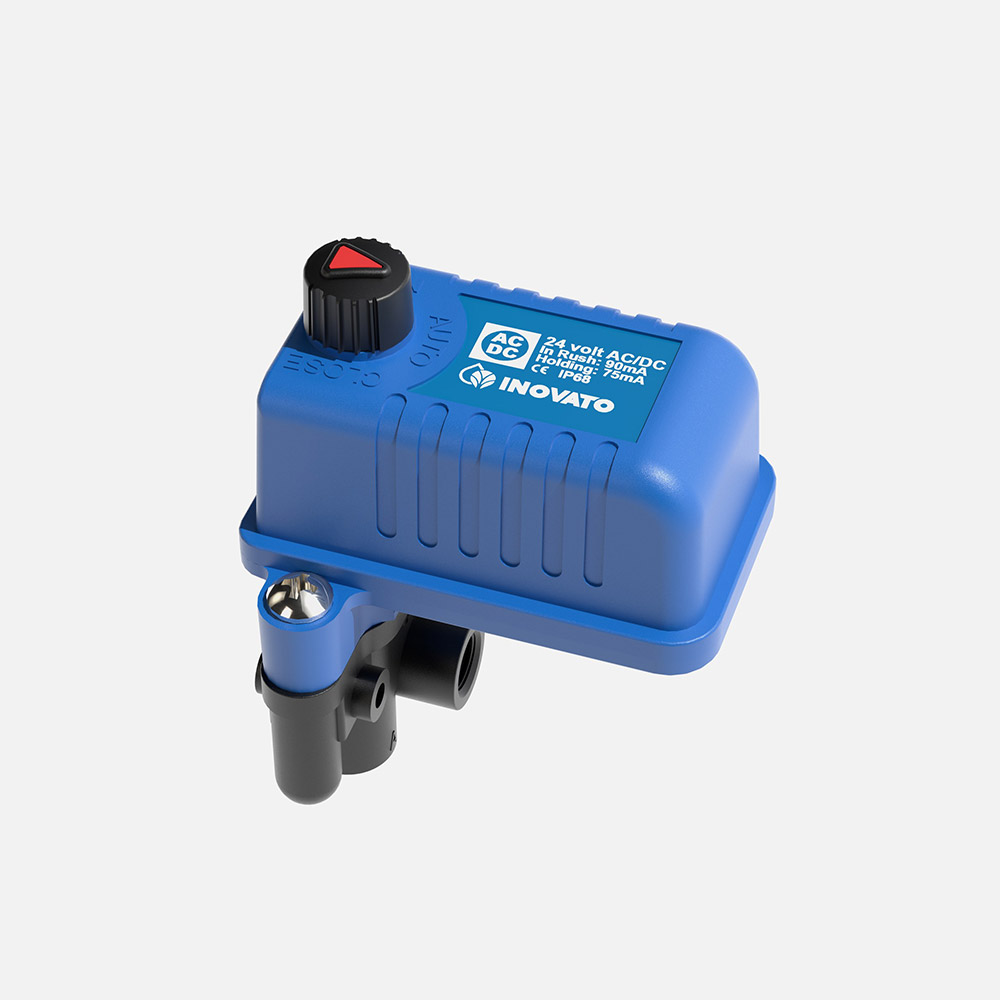

China Suppliers Factory Mechanical Solenoid 3W-24VAC/24VDC - AC/DC Associated Solenoid from INOVATO
Models
3W-24VAC/VDC
| Product Identification | 8DS |
| Port Thread | 1/8” BSPT |
| Pressure | 0.5-10 Bar |
| Material | Nylon reinforced |
| Sealed Material | NBR |
| Fluid TEMP | ≤60℃ |
| Voltage Range | 24VAC/24VDC |
| In Rush Current | 90mA |
| Holding Current | 75mA |
Features
Can choose normally open or closed
Three-way equips manual reset: turn on, turn off, and auto
Constant Voltage: 24VAC/24V DC
Protection Class: IP-68
Pulse Voltage: 24VAC/ DC
Frequently Asked Questions
Q:
What is the voltage specification for the 8DS model?
The 8DS model supports a constant voltage range of 24VAC/24VDC, as well as pulse voltage configurations.
Q:
What materials are used for the body and sealing?
The valve body is constructed from durable nylon reinforced material, and the seal is made from high-quality NBR (Nitrile Butadiene Rubber).
Q:
What is the operating pressure and temperature limit?
This valve operates within a pressure range of 0.5 to 10 Bar and is designed to handle fluid temperatures up to ≤60℃.
Q:
Does the valve support manual override options?
Yes, the three-way configuration is equipped with a manual reset feature that allows you to switch between turn on, turn off, and auto modes.
Q:
What is the IP rating and power consumption of this model?
It has a waterproof protection rating of IP-68. The electrical current draw features an in-rush current of 90mA and a holding current of 75mA.
