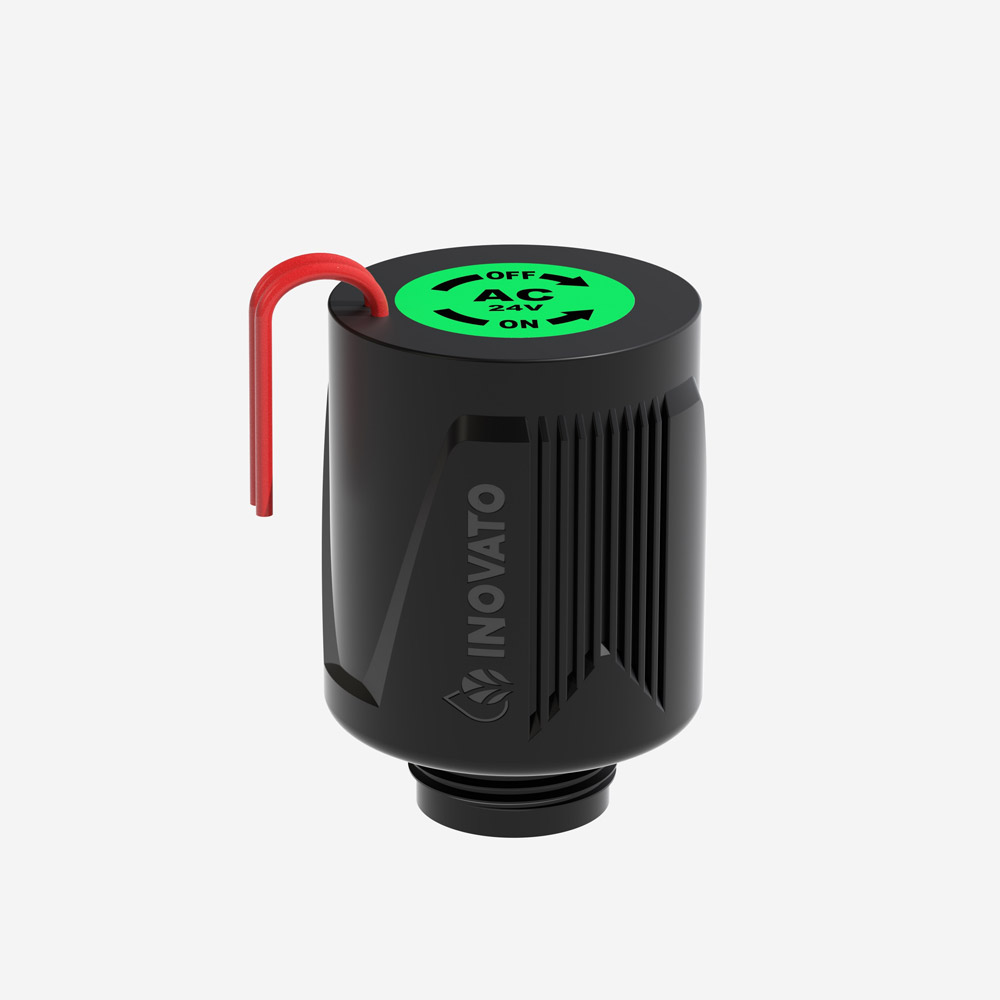

High-Quality INOVATO AC DC-Latching Solenoid Coils from Trusted China Suppliers and Factory
Models
2W electrical parameter & max cable length
| Solenoid valve type | Cable color | Watt | Inrush current | Holding current | Coil resistance |
|---|---|---|---|---|---|
| 2W-24VAC | red/red | 1.7 | 0.25 | 0.125 | 37.5 |
| 2W-24VDC | black/black | 3.6 | 0.18 | 0.18 | 156 |
| 2W-12VDC | blue/blue | 4.0 | 0.33 | 0.33 | 36 |
| 2W-9VDC | red/blue | 4.3 | 0.33 | 0.33 | 36 |
| Solenoid valve type | Cable color | Coil inductance | Pulse width | Coil resistance |
|---|---|---|---|---|
| 2W-9-30VDC Pulse | red/black | 12mH | 20-500mSec | 6 |
3W electrical parameter & max cable length
| Solenoid valve type | Cable color | Watt | Inrush current | Holding current | Coil resistance |
|---|---|---|---|---|---|
| 3W-24VAC | red/red | 2.2 | 0.13 | 0.13 | 37.5 |
| 3W-24VDC | black/black | 4.3 | 0.12 | 0.12 | 137 |
| 3W-12VDC | blue/blue | 4.3 | 0.28 | 0.28 | 34 |
| 3W-9VDC | red/blue | 4.3 | 0.47 | 0.47 | 19 |
| Solenoid valve type | Cable color | Coil inductance | Pulse width | Coil resistance |
|---|---|---|---|---|
| 3W-9-30VDC Pulse | red/black | 12mH | 20-500mSec | 6 |
Features
The solenoid actuator is the key part of the valve controller and the important device to connect the valve and controller. The solenoid actuator is compatible with all major controller, can achieve a variety of functions.
Frequently Asked Questions
What is the primary function of the solenoid actuator?
The solenoid actuator acts as the key component of the valve controller, serving as the essential device that connects the valve and the controller to execute various control functions.
Are these solenoid actuators compatible with third-party controllers?
Yes, our solenoid actuators are designed to be highly compatible with all major controller brands on the market, facilitating seamless integration and versatile functionality.
How can I identify different types of solenoid valves by cable color?
Solenoid valve types are color-coded: red/red cables for 24VAC models, black/black for 24VDC, blue/blue for 12VDC, red/blue for 9VDC, and red/black for 9-30VDC Pulse models.
What is the coil resistance for the 2W-24VDC model compared to the 3W-24VDC model?
The 2W-24VDC model has a coil resistance of 156 ohms, while the 3W-24VDC model has a coil resistance of 137 ohms.
What are the specifications for the 9-30VDC Pulse solenoid valves?
Both the 2W and 3W 9-30VDC Pulse models feature red/black cables, a coil inductance of 12mH, a pulse width range of 20-500mSec, and a coil resistance of 6 ohms.
