INOVATO HF01-04 Gear Drive Sprinkler - 4 Adjustable from 35° to 360° - Top China Suppliers - Quality Factory Product

,

Brand: INOVATO

,

Product Model: HF01

,

Description: Introducing the HF01-04, a versatile 4-inch adjustable nozzle that ranges from 35° to 360°. Featuring a ½ inlet, it comes complete with eight standard nozzles for various uses. This product is perfect for anyone looking for reliable irrigation solutions.

,

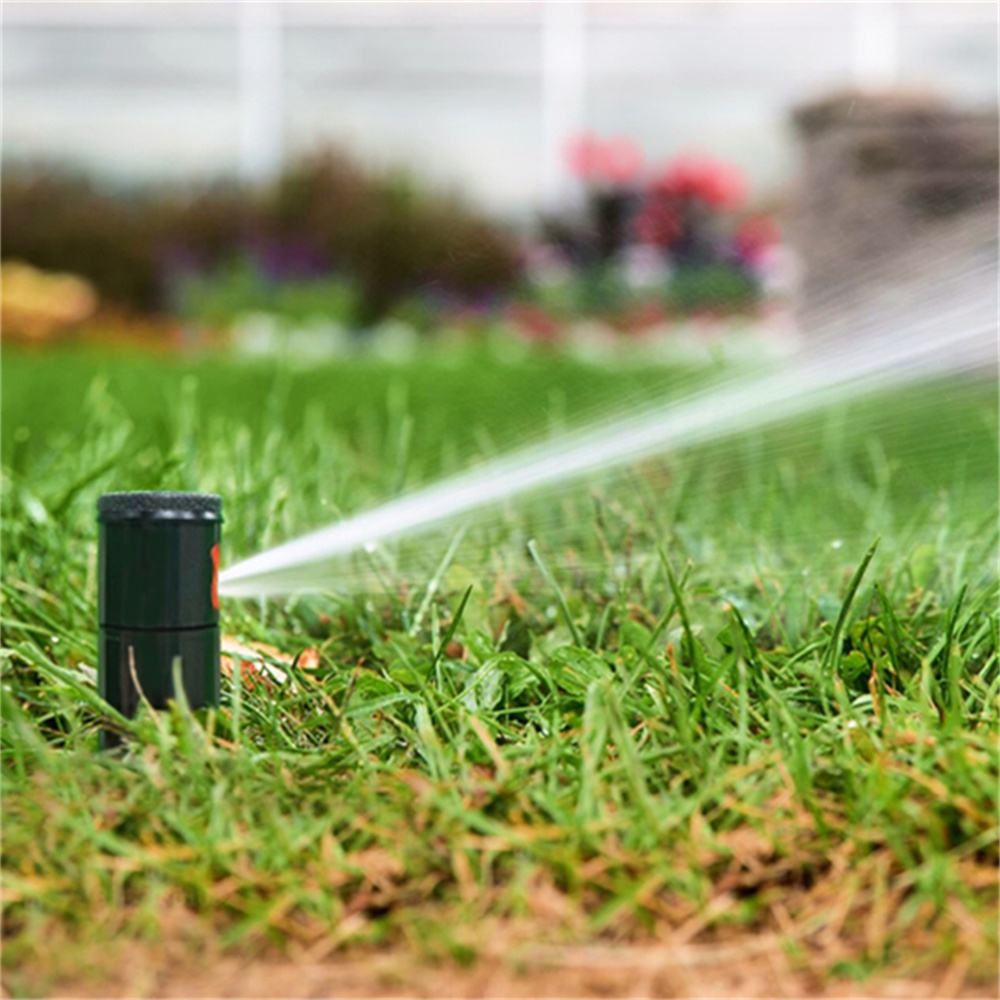

Applications: Ideal for turfs, shrubs, gardens, and more, making it a must-have for landscaping professionals and gardening enthusiasts alike. As a leading supplier in China, our factory ensures the highest quality for all your irrigation needs.

,
    Contact us
    Product Details

    Dimensions

    Overall Height

    18cm

    Exposed Diameter

    3cm

    Inlet Size

    1/2" Female

    Features

    • Models: 10cm
    • Arc setting: 35°~360°
    • Nozzle choice: 8
    • Nozzle range: 0.5~4.0 red
    • Factory-installed rubber cover
    • Through-the-top arc adjustment
    • Quick check arc mechanism
    • Water lubricated gear-drive
    • Warranty: 2 years

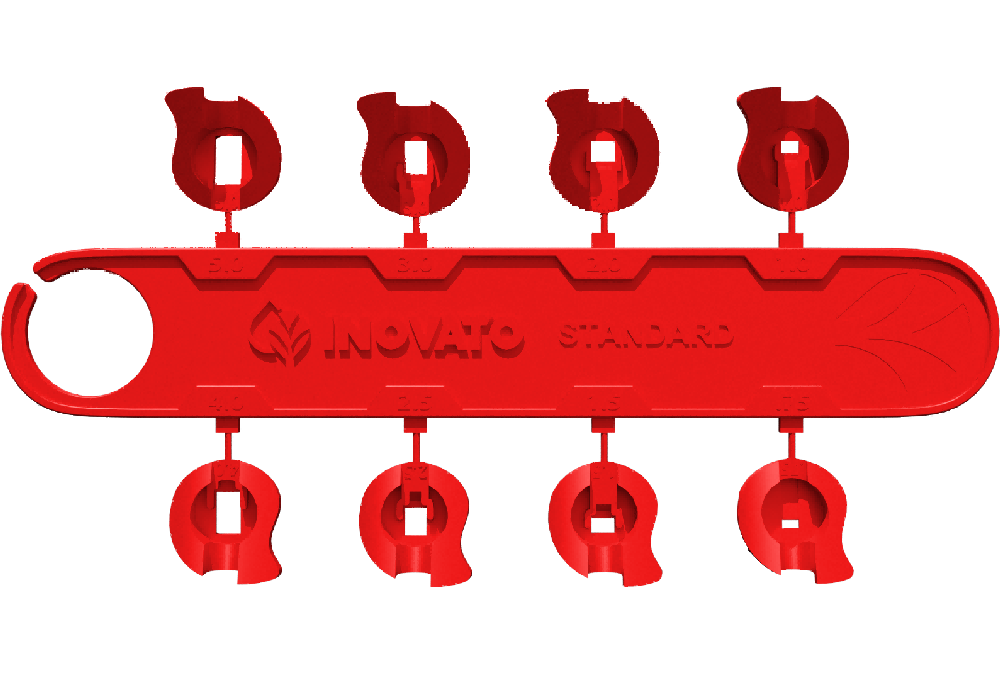

    HF01-04 (4)

    ■ standard

    Operating Specifications

    • Radius: 4.3~10.7m
    • Flow: 0.08~1.0m³/hr; 1.4~16.7l/min
    • Precipitation rate: 15mm/hr approx
    • Recommended working pressure: 1.7~3.8bar; 170~380kPa
    • Operating working pressure: 1.4~6.9bar; 140~690kPa
    hf02-0406

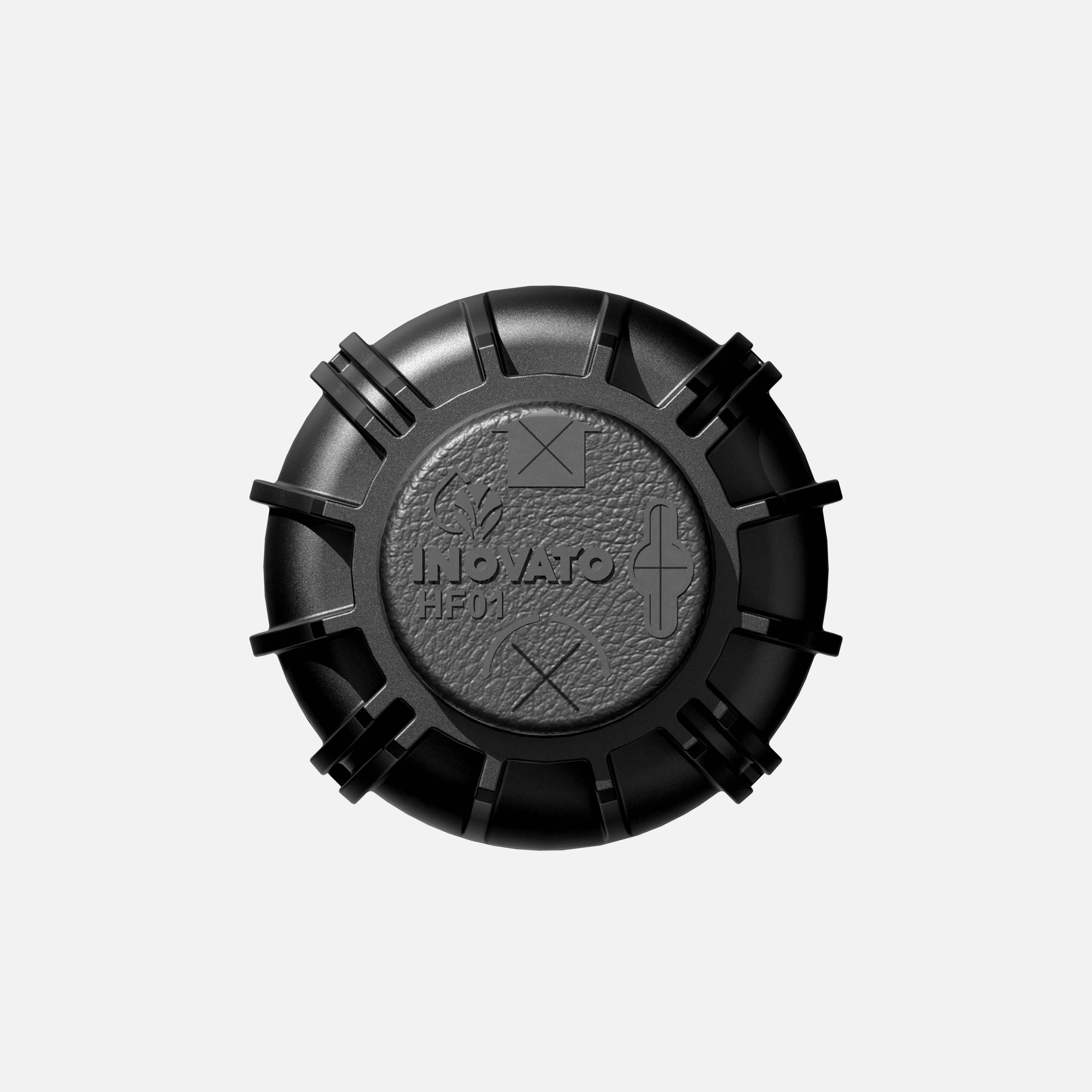

    Introduction To End Cap Hole Position

    lift

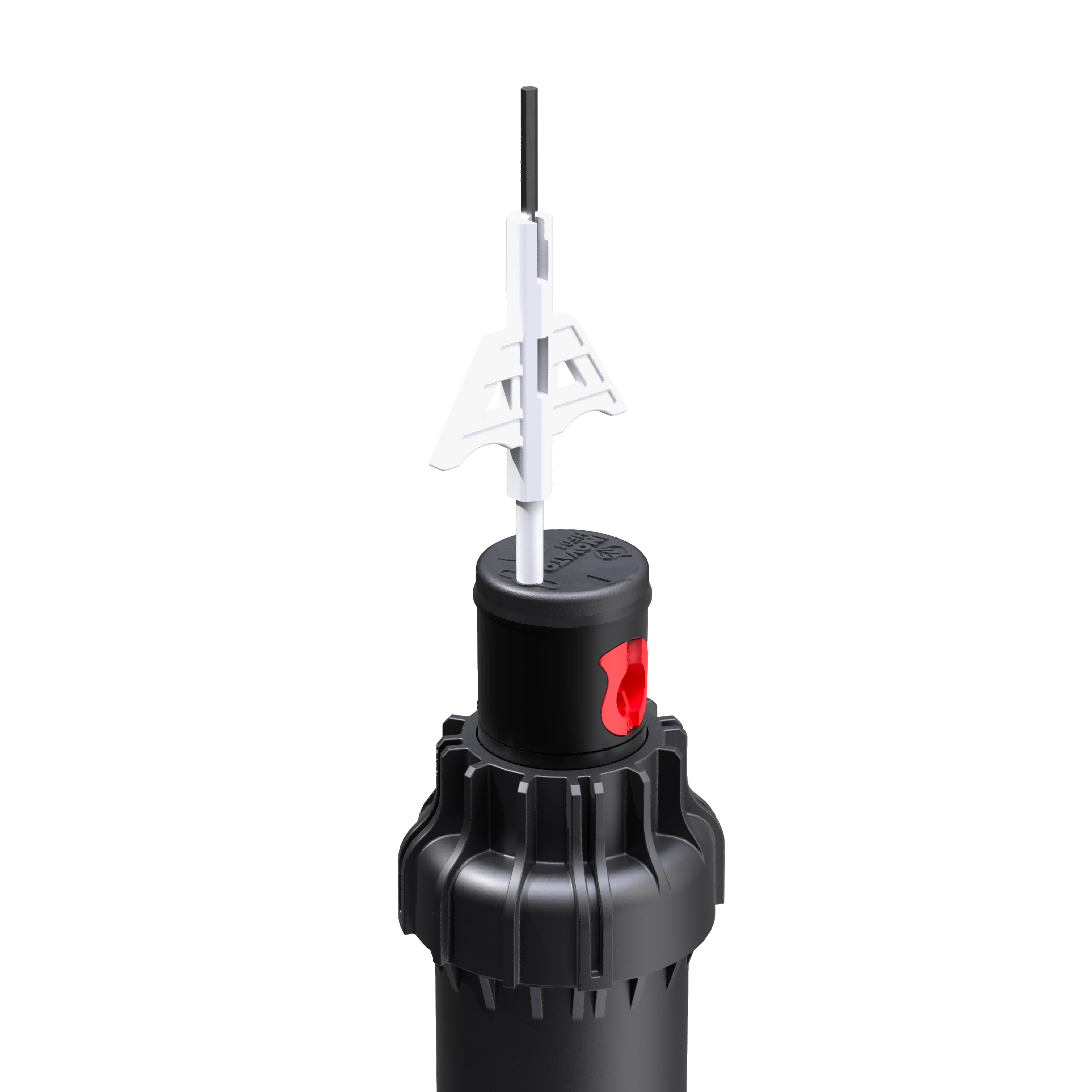

    Lift

    Use the plastic head to the side lift hole, turn around and lift the pop-up head. Please lift and release slowly. Caution not to hurt yourself.

    Nozzle-Remove

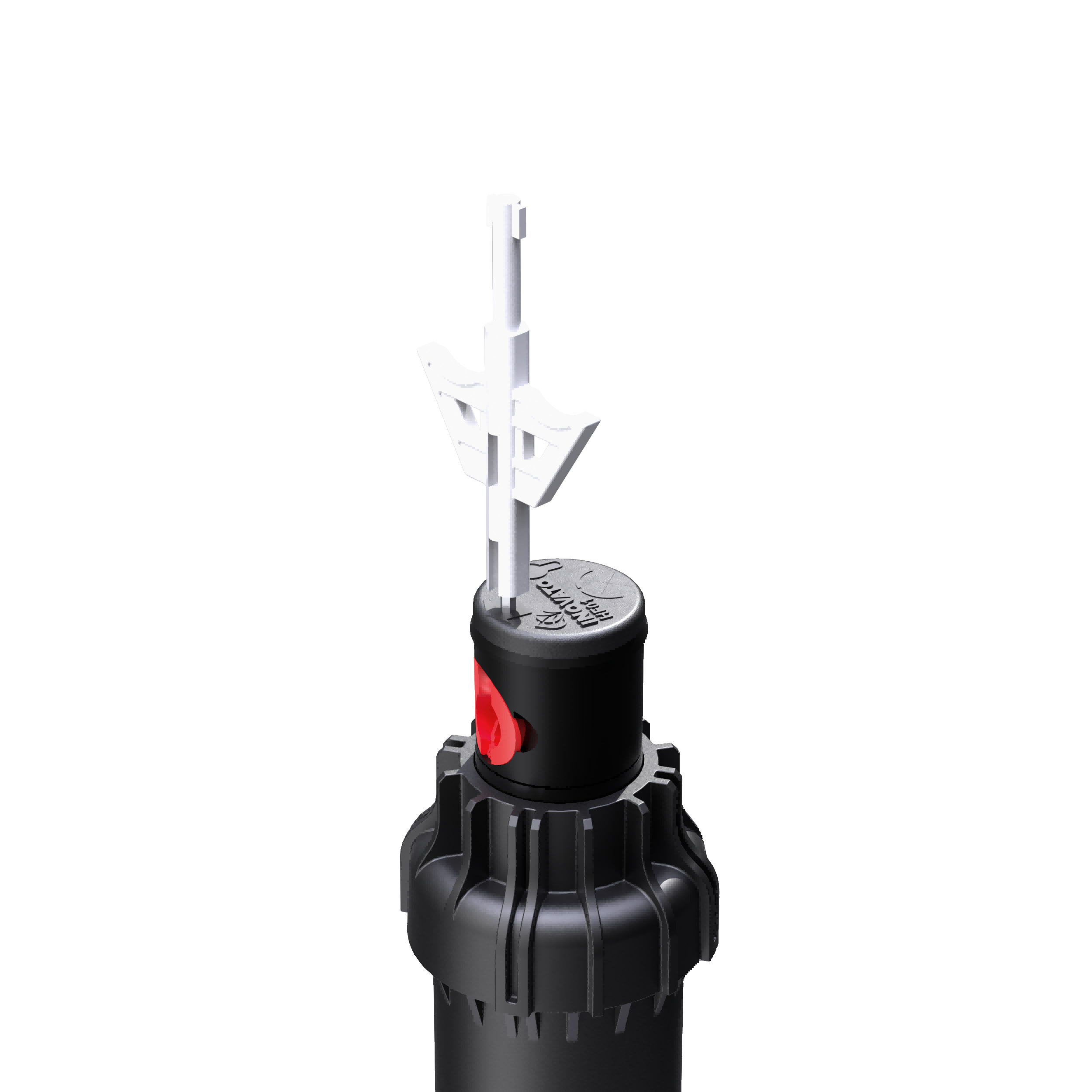

    Nozzle Remove

    Use the steel head to the nozzle-remove hole, anti-clockwise to loose the screw and remove the nozzle. Pick a replacement nozzle and clockwise the screw. Please don't over-rotate it. Caution not to scratch the nozzle.

    Angle-Adjustment

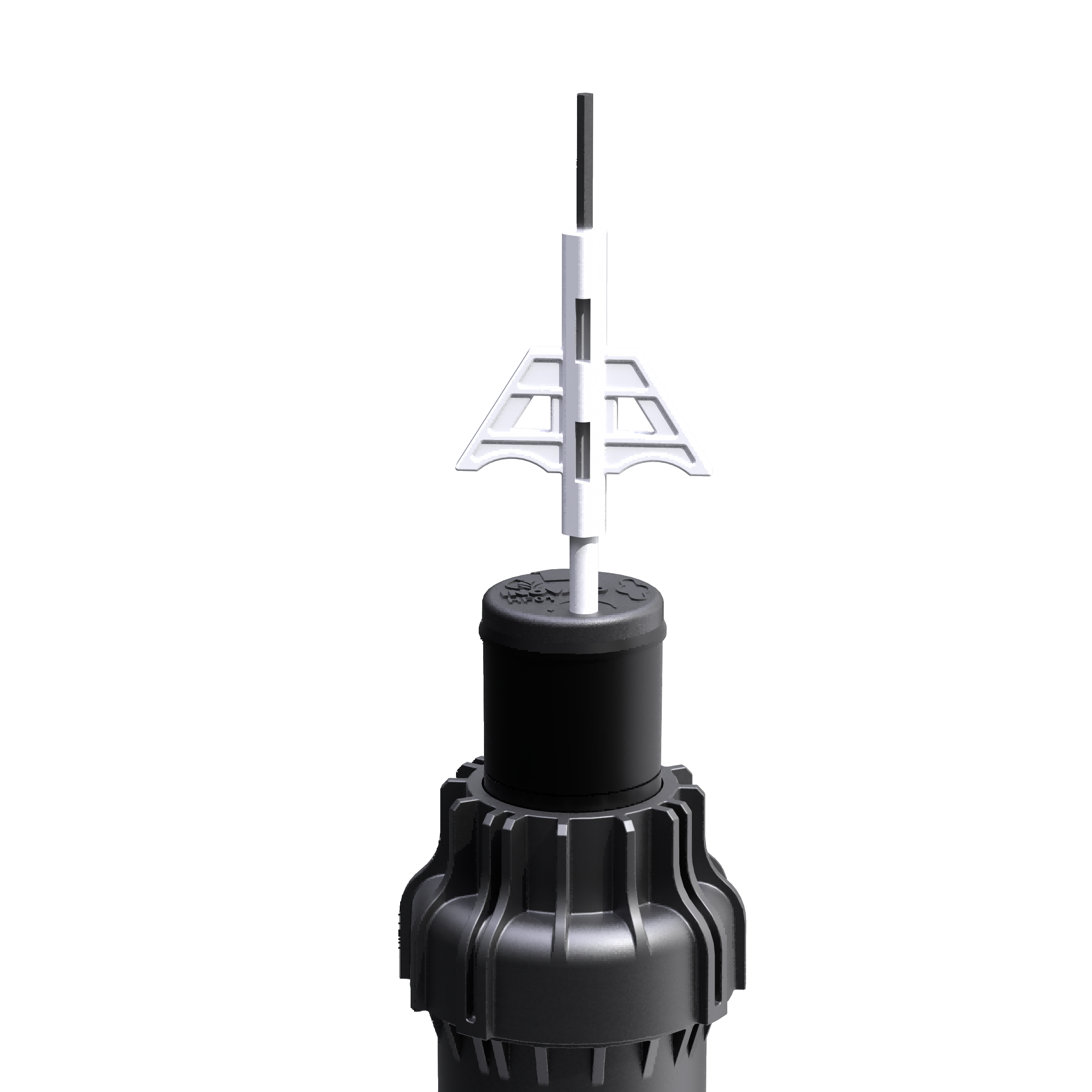

    Angle Adjustment

    Use the plastic head to the angle-adjust hole, clockwise to magnified the angle, anticlockwise to reduce the angle. Please rotate slowly, check the angle each half circle. Caution not to over-rotate it.

    Detail Display

    Lift
    Nozzle Remove
    Angle Adjustment

    Frequently Asked Questions

    What are the dimensions and inlet size of this sprinkler?
    The sprinkler has an overall height of 18cm, an exposed diameter of 3cm, and features a 1/2" female inlet size.
    What is the adjustable arc range and nozzle selection?
    The arc setting is fully adjustable from 35° to 360°. It offers a choice of 8 nozzles with a nozzle range of 0.5~4.0 red.
    What is the recommended operating pressure for this sprinkler?
    The recommended working pressure is between 1.7 to 3.8 bar (170 to 380 kPa), with an operating working pressure range of 1.4 to 6.9 bar (140 to 690 kPa).
    How do I safely lift the pop-up head?
    Insert the plastic head tool into the side lift hole, turn it, and lift the pop-up head. Be sure to lift and release slowly to avoid injury.
    How do I adjust the watering angle?
    Insert the plastic head into the angle-adjust hole. Turn clockwise to increase the angle, and counter-clockwise to reduce the angle. Rotate slowly and check the angle every half circle, taking care not to over-rotate.
    How do I replace or remove the nozzle?
    Insert the steel head tool into the nozzle-remove hole. Turn counter-clockwise to loosen the screw and remove the nozzle. Insert the new nozzle and tighten the screw clockwise. Avoid over-rotating to prevent scratching the nozzle.
