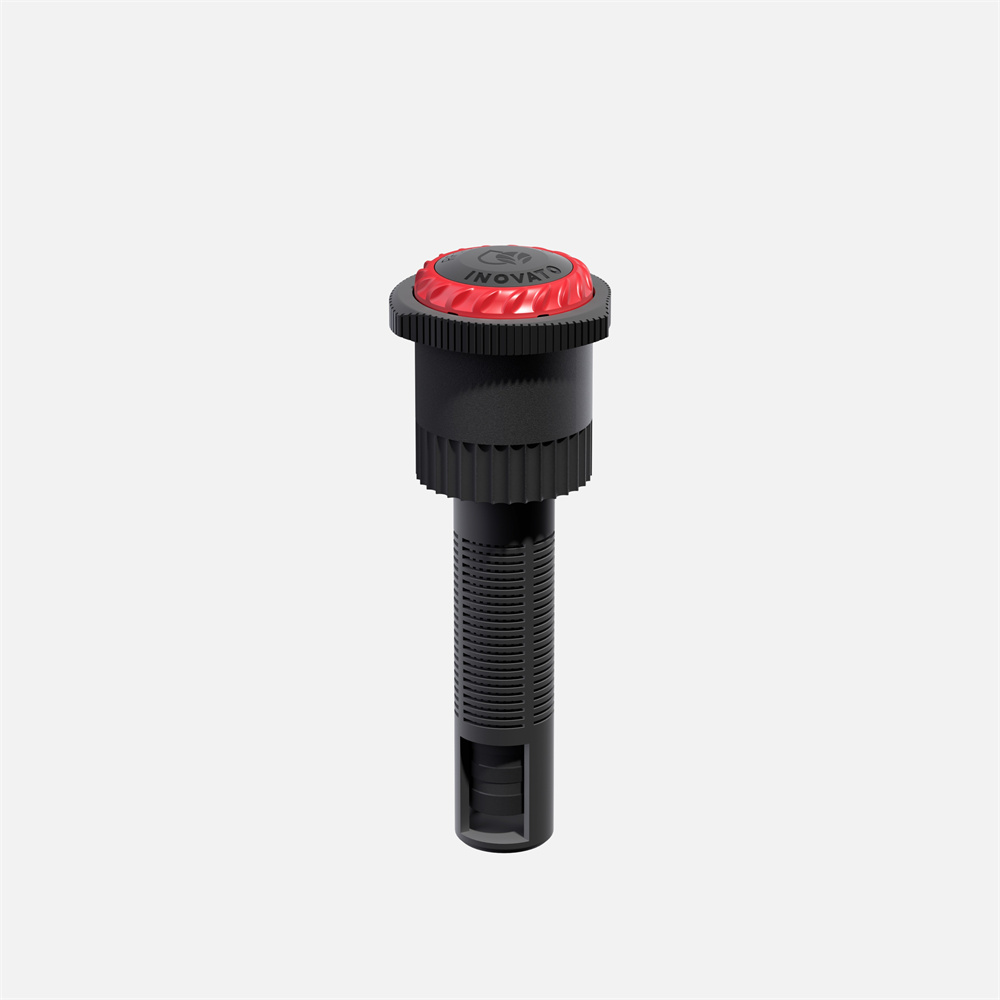

INOVATO RF101 Nozzles - Adjustable 90° to 210° Arc for Turfgrass | China Suppliers & Factory

,

Brand: INOVATO

,

Product Model: RF101

,

Description: The RF101 Nozzle features an adjustable arc range from 90° to 210°, making it a versatile choice for various irrigation needs. Its striking red color adds a touch of visibility.

,

Applications: This nozzle is ideal for applications in turfgrass, shrubs, and gardens, ensuring efficient water distribution. As a leading manufacturer and supplier from China, we provide high-quality products that enhance your gardening and landscaping experience.

,
    Contact us
    Product Details

    Dimensions

    • Diameter: 25.7 mm
    • Overall height: 70.7 mm
    Product Dimensions

    Features

    Radius can be reduced up to 25% on all models
    Color-coded for easy identification
    Removable filter screen prevents large objections from clogging nozzle
    Low precipitation rate
    Wind-resistant multi-stream technology
    RF101 nozzle can be adjusted in the angle range of 90° to 210°
    Double-pop feature protects the nozzle from external debris

    Operating Specification

    • Arc: 90° to 210°
    • Recommended working pressure: 2.8 bar or 40 PSI
    • Minimum working pressure: 1.7 bar or 25 PSI
    Operating Arc Range

    Frequently Asked Questions

    What are the dimensions of this nozzle?

    The nozzle has an outer diameter of 25.7 mm and an overall height of 70.7 mm.

    What is the adjustable arc range for the RF101 nozzle model?

    The RF101 nozzle can be adjusted to cover an angle range from 90° up to 210°.

    What is the recommended working pressure for optimal operation?

    The recommended working pressure is 2.8 bar (40 PSI), with a minimum operational limit of 1.7 bar (25 PSI).

    How does the nozzle prevent clogging from external debris?

    The nozzle features a removable filter screen that blocks large particles and a double-pop design that protects the nozzle from external debris when retracted.

    Can the spray radius be customized?

    Yes, the radius can be reduced by up to 25% across all models to fit specific irrigation layouts.
