INOVATO SF-PRS40 Sprinklers & Accessories - China Suppliers Factory for Pressure Regulated Sprinkler Solutions
Dimensions
Features

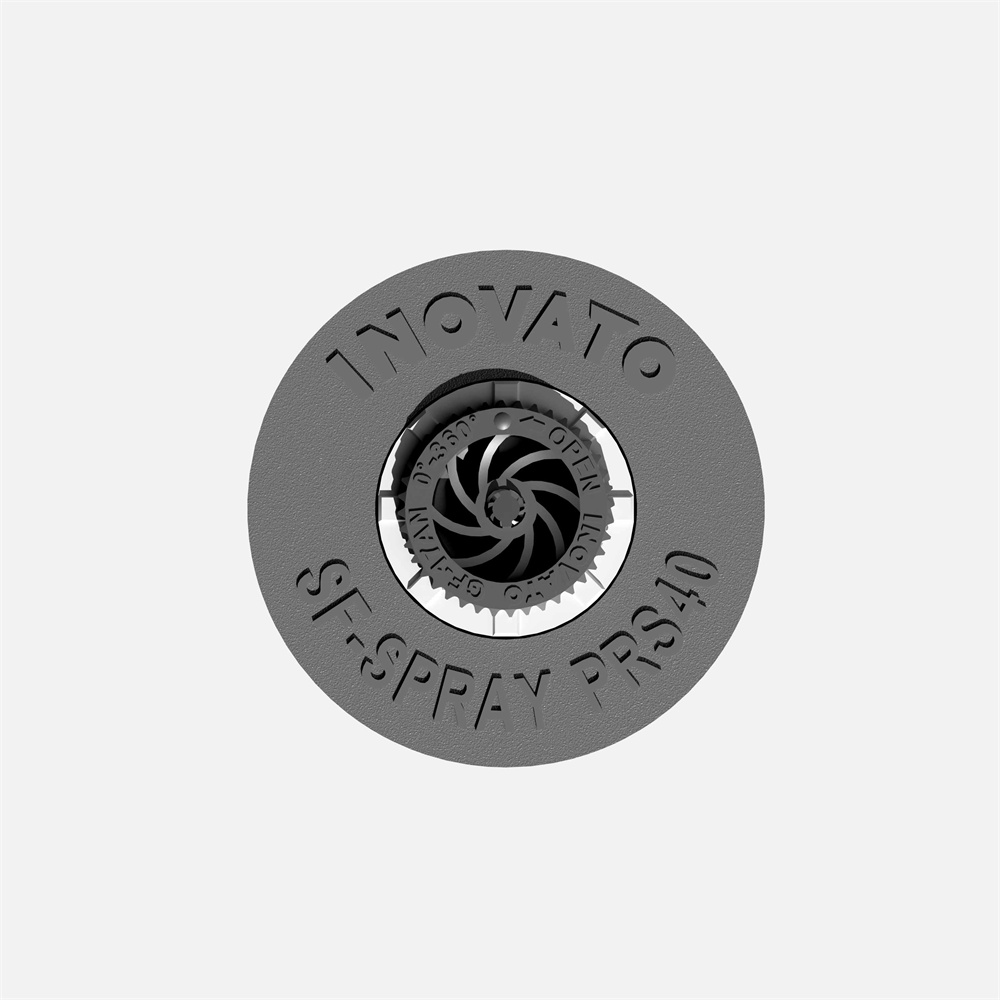

- Gray cap for easy field identification
- Interchangeable components for easier servicing, retrofits, and upgrades
- Heavy duty spring for consistent riser retraction
Operating Specifications
Factory Installed Options
- Available for 10cm, 15cm, 30cm sprinkler body
- Reclaimed water ID cap
- Drain check valve: 7.5cm, 10cm, 15cm, 30cm models (up to 3m of elevation)
Frequently Asked Questions
What are the dimensions of this sprinkler body?
The sprinkler body has an overall height of 15.5cm, a pop-up height of 10cm, and an exposure diameter of 5.7cm. It is equipped with a 1/2" female thread inlet size.
What is the optimum operating pressure for the sprinkler?
The optimum working pressure is 2.1 bar. For PRS40 models, it operates at a regulated pressure of 40 PSI (2.8 bar).
What features make maintenance easier?
This model features a gray cap for easy field identification and interchangeable components, which simplifies servicing, retrofits, and upgrades.
Does the sprinkler have a reliable riser retraction mechanism?
Yes, it is designed with a heavy-duty spring to ensure consistent and reliable riser retraction after every operation.
Which sprinkler body sizes support the factory-installed options?
Factory options are available for 10cm, 15cm, and 30cm sprinkler bodies. Additionally, drain check valves are available for 7.5cm, 10cm, 15cm, and 30cm models (up to 3m of elevation).
