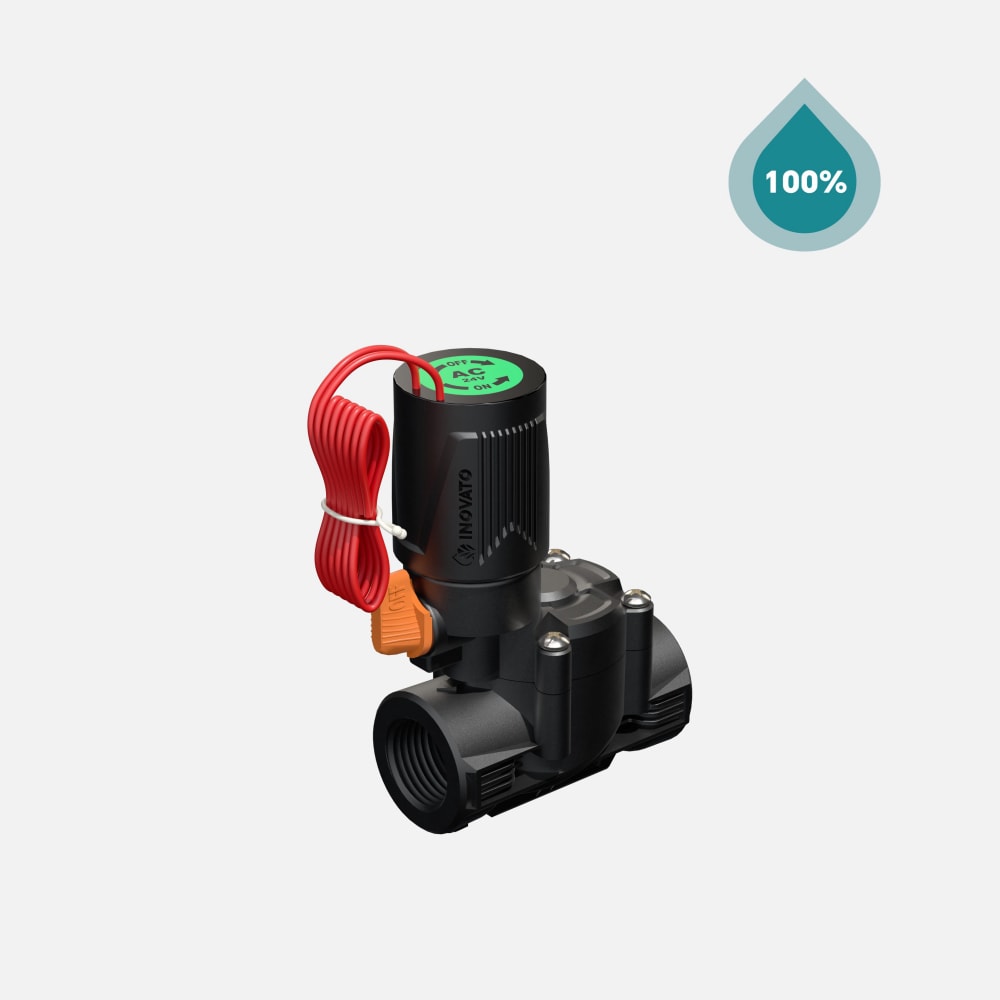

INOVATO YT210-1/2 Solenoid Valve - China Suppliers and Factory for Hydraulic Control Applications

,

Brand: INOVATO

,

Product Model: YT210-1/2

,

Size: 1/2 valve featuring female thread inlet and outlet, designed without flow control.

,

Description: Introducing the INOVATO solenoid valve, a premier choice from leading China suppliers. This hydraulically driven diaphragm type hydraulic control valve is engineered for efficient operation, allowing you to easily turn it on and off using an electrical signal. All INOVATO valves are meticulously tested with 100% water flow for guaranteed reliability upon installation. As a trusted factory in the industry, INOVATO guarantees quality and performance in every product.

,
    Contact us
    Product Details

    Dimensions

    Inlet size: 1/2inch, DN15
    Female Thread, NPT/BSPT
    L*W*H: 73.5*41*61 mm

    Advanced Features

    Flow control: none
    SNL-ADJ capable

    Factory-Installed Options

    LS: Valve without solenoid
    DC: DC-Latching Solenoid for battery-operated controllers

    Solenoid Specifications

    Solenoid Coil: AC Solenoid, DC-Latching Solenoid(Pulse)
    Mechanical Solenoid: AC/DC Associated Mechanical Solenoid
    DC-Latching Mechanical Solenoid(Pulse)

    Operating Specifications

    Flow: 2.8 to 33 m³/h; 12.57 to 148 gal/min
    Recommended pressure range: 0.069 to 1 MPa, 10 to 145 PSI
    Temperature rating: 60°C; 140°F
    Warranty period: 2 years

    Typical Applications

    Residential
    Pressure regulation
    Low-pressure systems

    Frequently Asked Questions

    Q1: What are the dimensions and thread options of the inlet?
    The inlet size is 1/2 inch (DN15) featuring a Female Thread compatible with both NPT and BSPT specifications. The overall physical dimensions are 73.5*41*61 mm (L*W*H).
    Q2: What is the recommended operating pressure for this valve?
    The recommended operating pressure range is between 0.069 to 1 MPa, which translates to approximately 10 to 145 PSI, making it suitable for various pressure environments.
    Q3: What types of solenoids are compatible with this system?
    The valve supports AC Solenoids and DC-Latching Solenoids (Pulse). For mechanical options, it is compatible with AC/DC Associated Mechanical Solenoids and DC-Latching Mechanical Solenoids (Pulse).
    Q4: What flow rates can this valve accommodate?
    This valve is designed to handle flow rates ranging from 2.8 to 33 m³/h, which is equivalent to 12.57 to 148 gallons per minute (gal/min).
    Q5: What are the primary applications for this valve?
    It is ideally designed for residential installations, pressure regulation setups, and low-pressure fluid systems.
    Q6: What is the warranty period and temperature limit?
    The product is backed by a 2-year warranty period and is rated to safely operate at temperatures up to 60°C (140°F).
