Flag Dripper

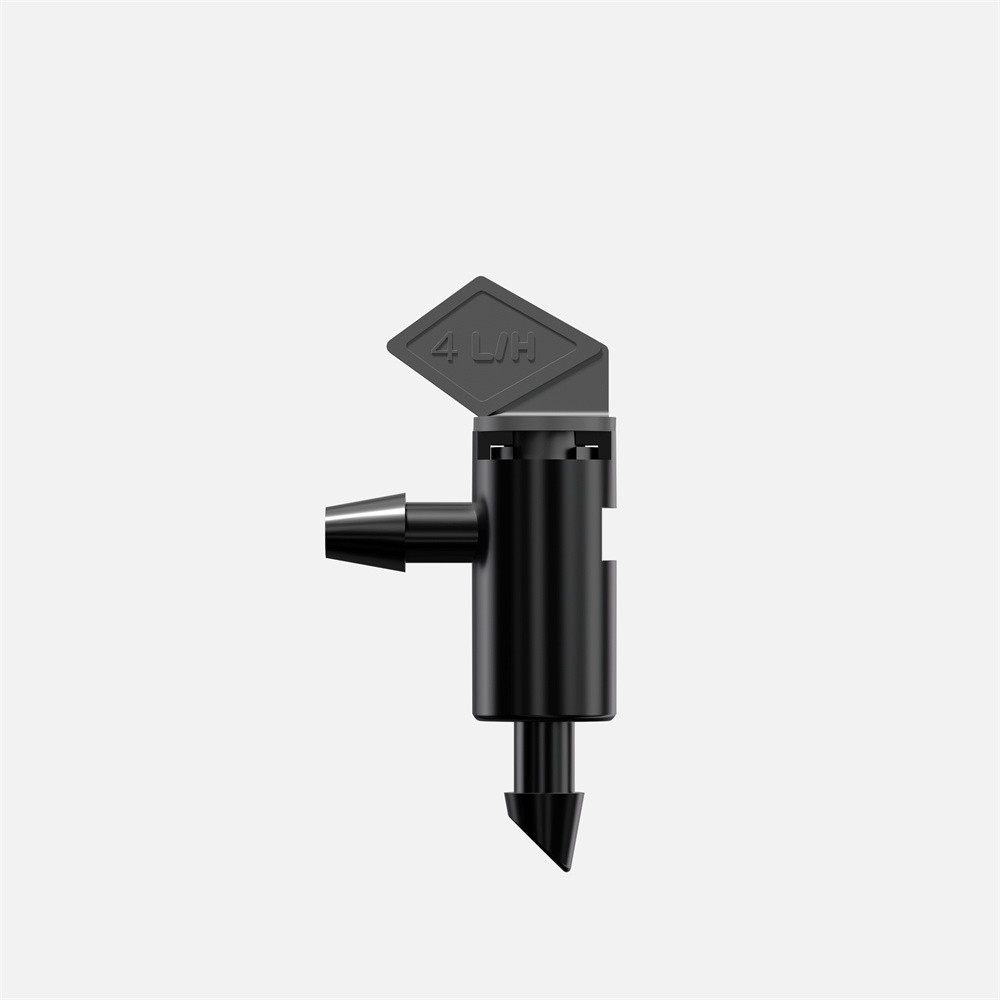

OFD-04 Flag Dripper
Features
Self-tapping barbed inlet for easy installation
Spiral flow through a large-flow-path water passage reduces likelihood of clogging
Twist-open top with lock for secure operation under pressure and for easy cleaning
Durable high-impact plastic
Resistant to chemicals and fertilizers used in landscape application
Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
Product Specifications
Operating pressure range: 10 to 24 PSI
Recommended operating pressure: 25 PSI
Filter requirement: minimum of 150 mesh
Material: body and cover of polypropylene
Performance Data
Flow rate in gallons per hour at 5 to 30 psl
|
Color |
5PSI |
10PSI |
15PSI |
20PSI |
25PSI |
30PSI |
|
Black |
0.5 |
0.79 |
1 |
1.22 |
1.39 |
1.55 |
*The normal flow rate is 1GPH
Maximum number of 1 GPH black drip emitters on 1/2" drip tubing with .600lD
|
Drip emitters spacing |
1’ |
2’ |
3’ |
4’ |
|
Flow rate @ 25 PSI |
1.39 |
1.39 |
1.39 |
1.39 |
|
Maximum length |
124 |
192 |
249 |
304 |
|
Flow rate in GPM |
2.87 |
2.22 |
1.92 |
1.76 |
|
Flow rate in GPH |
172.4 |
133.4 |
115.4 |
105.6 |
|
# of drip emitters |
124 |
96 |
83 |
76 |
|
Velocity (f/s) |
3.26 |
2.52 |
2.18 |
2 |
|
Total head loss in PSl |
5.5 |
5.19 |
5.05 |
5.23 |
*Based on around 90% flow uniformity and 0% slop
