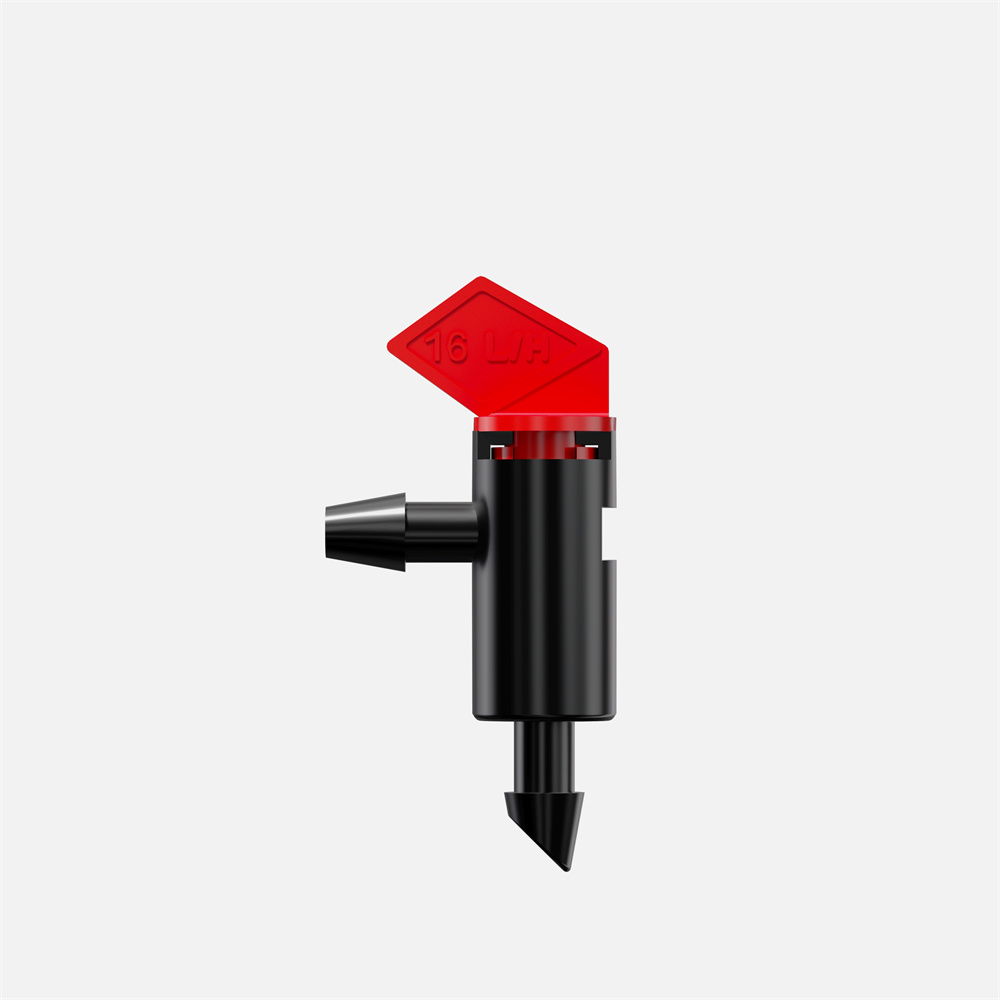

OFD-16 Flag Dripper by INOVATO - Reliable China Suppliers & Factory for Agriculture, Garden, and Greenhouse Applications
Features
- Self-tapping barbed inlet for easy installation
- Spiral flow through a large-flow-path water passage reduces likelihood of clogging
- Twist-open top with lock for secure operation under pressure and for easy cleaning
- Durable high-impact plastic
- Resistant to chemicals and fertilizers used in landscape application
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
Product Specifications
- Operating pressure range: 10 to 24 PSI
- Recommended operating pressure: 25 PSI
- Filter requirement: minimum of 150 mesh
- Material: body and cover of polypropylene
Performance Data
Flow rate in gallons per hour at 5 to 30 psl| Color | 5PSI | 10PSI | 15PSI | 20PSI | 25PSI | 30PSI |
|---|---|---|---|---|---|---|
| Red | 1.72 | 2.81 | 3.61 | 4.29 | 4.92 | 5.51 |
| Drip emitters spacing | 1’ | 2’ | 3’ | 4’ |
|---|---|---|---|---|
| Flow rate @ 25 PSI | 4.29 | 4.29 | 4.29 | 4.29 |
| Maximum length | 59 | 94 | 120 | 148 |
| Flow rate in GPM | 4.22 | 3.36 | 2.86 | 2.65 |
| Flow rate in GPH | 253.1 | 201.6 | 171.6 | 158.7 |
| # of drip emitters | 59 | 47 | 40 | 37 |
| Velocity (f/s) | 4.79 | 3.81 | 3.25 | 3.01 |
| Total head loss in PSl | 5.1 | 5.38 | 5.02 | 5.31 |
Frequently Asked Questions
What is the recommended operating pressure for these drip emitters?
The recommended operating pressure is 25 PSI, with an operating pressure range of 10 to 24 PSI.
What materials are used in the construction of the drip emitters?
They are constructed from durable, UV-resistant high-impact plastic. Specifically, the body and cover are made of polypropylene to withstand adverse conditions, chemicals, and fertilizers.
What is the filtration requirement for these drip emitters?
To ensure proper operation and prevent clogging, a minimum filter requirement of 150 mesh is recommended.
How does the design prevent the emitters from clogging?
The emitters feature a spiral flow through a large-flow-path water passage, which significantly reduces the likelihood of clogging.
Can these drip emitters be opened for cleaning?
Yes, they are designed with a twist-open top featuring a lock, allowing for easy cleaning and secure operation under pressure.
