Commercial Landscape Installers Source SJ Swing Joints for Flexible Riser Connections in High-Traffic Area Sprinkler System Installations
Why We Built Our SJ Swing Joint Product Line for Commercial Landscape Irrigation
We at INOVATO have been manufacturing irrigation equipment since 2005, and we spent the first several years focused primarily on impact sprinklers and drip irrigation products for agricultural applications. We began receiving inquiries from commercial landscape irrigation installers who were specifying swing joints as components in their sprinkler system designs, and we investigated what swing joints do and why they are needed in commercial landscape applications. We found that the primary function of a swing joint is to provide a flexible connection between the underground irrigation pipe and the sprinkler head riser, which allows the sprinkler to move when subjected to lateral forces without transmitting that movement to the underground piping system.
We have learned that this flexibility is critical in commercial landscape installations for three reasons that directly affect the durability and maintenance requirements of irrigation systems. First, landscape areas with regular foot traffic — sports fields, public parks, school grounds — subject sprinkler heads to lateral impact forces every time someone walks across the landscape or maintenance crews run mowers and line trimmers near the sprinkler heads. Second, seasonal temperature changes cause the underground piping system to expand and contract, which creates stress at rigid connection points that can eventually cause pipe fractures or fitting failures. Third, we have found that sprinklers installed with rigid riser connections are significantly more likely to be damaged during installation by maintenance crews who do not realize how much lateral force a rigid connection can withstand before failing.
We decided to develop our own SJ swing joint product line because we found that the swing joint products available in the market at that time were either too expensive for large commercial projects or too low in quality to meet the durability requirements of professional irrigation installers. We leveraged our existing manufacturing capability for brass fittings and our relationships with polypropylene component suppliers to create an SJ swing joint product line that we believed would compete on both quality and price, which we have found is the primary concern of commercial landscape irrigation installers who are working on projects with tight material cost budgets.
The 360-Degree Rotating Joint Mechanism We Engineered Into Our SJ Swing Joints
We at INOVATO have designed our SJ swing joint with a ball-bearing rotating mechanism that provides 360-degree rotation capability at the joint connection. We have found that the smoothness and range of rotation in a swing joint directly determines how effectively it protects the underground piping system from lateral stress, which means we invest more engineering attention in the rotating mechanism than in almost any other component of our swing joint design. We use stainless steel bearing balls in our rotating joint mechanism, which we have found provides the smoothest rotation and the longest corrosion-resistant service life in underground burial conditions compared to the plastic bearing alternatives that some lower-cost swing joint manufacturers use.

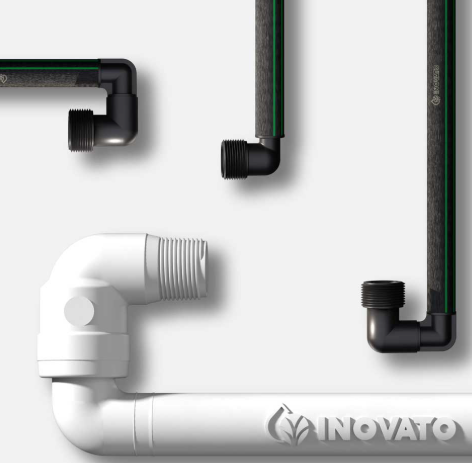

We offer our SJ swing joints in both brass and polypropylene constructions to cover the full range of commercial landscape irrigation applications. We offer brass SJ swing joints with nickel-plated body finish for above-ground installations and visible irrigation system components where aesthetic appearance and corrosion resistance are both important. We have found that brass swing joints are preferred in premium commercial landscape installations such as golf courses and sports field complexes where the irrigation system is maintained by professional groundskeeping teams and the visible components are expected to meet a certain aesthetic standard. We also offer PP SJ swing joints for buried underground installations where cost efficiency and chemical resistance are the primary concerns and aesthetic appearance is irrelevant.
We have specified our SJ swing joints for operating pressures up to 10 bar (150 PSI), which covers the full range of residential and commercial irrigation system pressure specifications in most international markets. We test every production batch at 1.5 times the rated pressure before release, and we provide pressure test certificates with each shipment that our commercial irrigation installer customers use for project documentation and warranty support purposes. We have also tested our SJ swing joints for vacuum resistance because we know that some irrigation system designs create suction conditions during drainage cycles that can collapse improperly designed swing joint components. We have not experienced any vacuum-related failures in our SJ swing joint products since we introduced our current bearing ball design in 2019, and we attribute this to the structural integrity of our stainless steel bearing ball mechanism.
The Inlet and Outlet Thread Configurations We Produce and How They Cover Commercial Applications
We at INOVATO offer SJ swing joints with inlet thread sizes from half-inch to 1.5 inch in both NPT and BSP thread standards, which means we can supply swing joints that match the underground piping specifications used in irrigation markets across North America, Europe, and Asia. We have found that thread standard compatibility is one of the most common sources of specification errors in commercial irrigation projects, because NPT and BSP threads are not interchangeable and mismatched threads can cause leaks or connection failures that are difficult to diagnose and expensive to repair. We maintain separate tooling for NPT and BSP configurations and we label every product clearly with the thread standard, which means our customers can verify the thread specification before installation and avoid the costly mismatches that occur when thread standards are assumed rather than confirmed.
We produce SJ swing joints with outlet configurations that accommodate the full range of sprinkler head connection specifications used in international commercial irrigation markets. We maintain production tooling for over 40 standard inlet-outlet combination specifications in our catalog, which means we can supply the exact combination that matches our customers' sprinkler head requirements without requiring adapters or custom fitting solutions. We have also developed multi-outlet SJ swing joint configurations for applications that require two or more sprinkler heads to be connected from a single underground supply point, which is a common requirement in sports field irrigation designs where sprinkler spacing does not align with the underground pipe layout.
We have developed our SJ swing joint product range based on the specific feedback we receive from commercial landscape irrigation installers who use our products in their projects. We have added new inlet-outlet combination specifications to our catalog whenever our customers have identified a gap in our existing range, and we have modified our bearing ball material specification based on field reports from installers who were using our swing joints in chemically treated irrigation water environments that caused premature corrosion in our original stainless steel specification. We view this willingness to adapt our product based on field feedback as a core competitive advantage of our manufacturing approach, and we continue to invest in new SJ swing joint configurations based on the changing requirements of the commercial landscape irrigation market.
Why Swing Joints Have Become Standard Specification in Professional Commercial Irrigation Installations
We at INOVATO have observed over the past decade that swing joints have transitioned from optional accessories to standard specification components in professional commercial landscape Irrigation Installations. We attribute this shift to three factors that we believe will sustain the demand for quality SJ swing joints in the commercial irrigation market. First, the increasing density of landscape installations in urban environments has created more high-traffic situations where sprinkler heads are subjected to regular lateral impact forces from pedestrian activity, maintenance equipment, and vehicles. Second, landscape architecture standards for sports fields, municipal parks, and corporate campus grounds have become more stringent, which means irrigation system designers are held to higher standards for the components they specify. Third, we have found that the total installed cost of a sprinkler system with swing joints is actually lower than the cost of a rigid-riser system when maintenance and repair costs are factored in over the expected 15 to 20 year service life of a commercial Irrigation Installation.
We have worked with landscape architecture firms and municipal parks departments that have documented the maintenance cost difference between swing joint and rigid-riser Irrigation Installations, and we have found that the data consistently shows that rigid-riser systems require 3 to 5 times more sprinkler head maintenance interventions over a 10-year period than swing-joint systems in high-traffic landscape environments. We have contributed technical documentation to several municipal specification documents that now require SJ swing joints as mandatory components in commercial landscape Irrigation Installations, which we view as validation that the professional irrigation industry has recognized the practical value of swing joint technology.
We have also noticed that the specification of SJ swing joints is increasingly required by municipal water authority stormwater management programs that are focused on reducing the infrastructure damage caused by irrigation system pipe failures. We have found that swing joints act as a mechanical fuse in irrigation systems by absorbing the stress concentrations that would otherwise be transmitted to underground piping connections, which means a properly installed swing joint will typically fail at the joint rather than causing a more serious underground pipe rupture. We have documented several cases where our SJ swing joints failed under extreme pressure conditions in a controlled manner that prevented underground pipe damage, which we believe demonstrates the protective function that swing joints provide in commercial irrigation systems.
We at INOVATO have standardized our SJ swing joint product specifications against the major international irrigation equipment standards including ISO 7749 and ASABE S261, which means our products are compatible with irrigation system components produced by the majority of international manufacturers. We have found that specification compatibility is one of the most important factors for commercial irrigation installers who are retrofitting existing systems or expanding current installations, because it allows them to substitute our swing joints for competing brands without modifying the surrounding system components. We provide cross-reference documentation that maps our product specifications to the equivalent models from the major international irrigation equipment brands, which simplifies the specification substitution process for our commercial installer customers.
We at INOVATO have established a dedicated technical support team for commercial landscape irrigation distributors who need application engineering assistance for complex swing joint installations. We have found that many swing joint specification errors can be prevented with a brief technical consultation before the order is placed, and we offer this consultation as a free service to our commercial distributor partners. We maintain a library of installation detail drawings that our customers can use for their own project documentation, and we can create custom installation drawings for unique site requirements that are not covered by our standard documentation library.
Frequently Asked Questions About Our SJ Swing Joints
We install commercial sprinkler systems for municipal parks and sports fields — what pressure rating do INOVATO SJ swing joints offer?
We at INOVATO specify our SJ swing joints for operating pressures up to 10 bar (150 PSI), which covers the full range of residential and commercial irrigation system pressure specifications in most international markets. We test every production batch at 1.5 times the rated pressure before release, and we provide pressure test certificates with each shipment that our commercial irrigation installer customers use for project documentation and warranty support. We can provide test pressure data and independent laboratory verification reports for specific project specifications that require third-party certification.
What materials does INOVATO use for SJ swing joints — are brass and PP versions both available?
We at INOVATO produce SJ swing joints in both brass and polypropylene (PP) constructions to cover the full range of commercial landscape irrigation applications. We offer brass SJ swing joints with nickel-plated body for installations where aesthetic appearance matters, and PP SJ swing joints for buried underground installations where cost efficiency and chemical resistance are the primary concerns. Both versions use stainless steel bearing balls for the rotating joint mechanism, which we have found provides the smoothest 360-degree rotation and the longest service life in underground conditions. We offer inlet sizes from half-inch to 1.5 inch in both NPT and BSP thread standards.
We need SJ swing joints with 1-inch inlet and multiple outlet options — does INOVATO offer these configurations?
We at INOVATO offer SJ swing joints with inlet sizes from half-inch to 1.5 inch NPT or BSP threads, and we produce outlet configurations that accommodate the full range of sprinkler head connection specifications used in international commercial irrigation markets. We maintain production tooling for over 40 standard inlet-outlet combination specifications in our catalog, and we can produce multi-outlet SJ swing joint configurations for applications that require two or more sprinkler heads from a single underground supply point. We provide inlet-outlet combination charts with our product catalog to help our customers identify the correct specification for their specific application requirements.
How to Order INOVATO SJ Swing Joints for Your Commercial Irrigation Projects
We at INOVATO have shared everything we know about our SJ swing joint product line and why swing joints have become standard specification in professional commercial landscape Irrigation Installations. If you are evaluating SJ swing joint suppliers for a commercial landscape irrigation project, we invite you to send us your project specifications and we will confirm which of our SJ swing joint configurations match your requirements. We provide sample units for project qualification testing before production orders, and we can arrange video calls with our technical team to discuss complex multi-outlet configurations and custom specification requirements.
You can reach our commercial irrigation products team through our product catalog or contact us directly by email. We respond to all commercial project inquiries within two working days, and we provide technical documentation including pressure test certificates, material specifications, and dimensional drawings for all our SJ swing joint configurations. The ISO 9001 quality management standard and the ISO 15886 irrigation equipment standard published by the International Organization for Standardization provide the quality and performance benchmarks that commercial landscape irrigation installers should reference when evaluating swing joint suppliers for professional installations. The FAO Sustainable Agriculture Platform provides additional context for irrigation water management best practices that professional landscape installers should consider in large-scale sports field and municipal green space applications.
