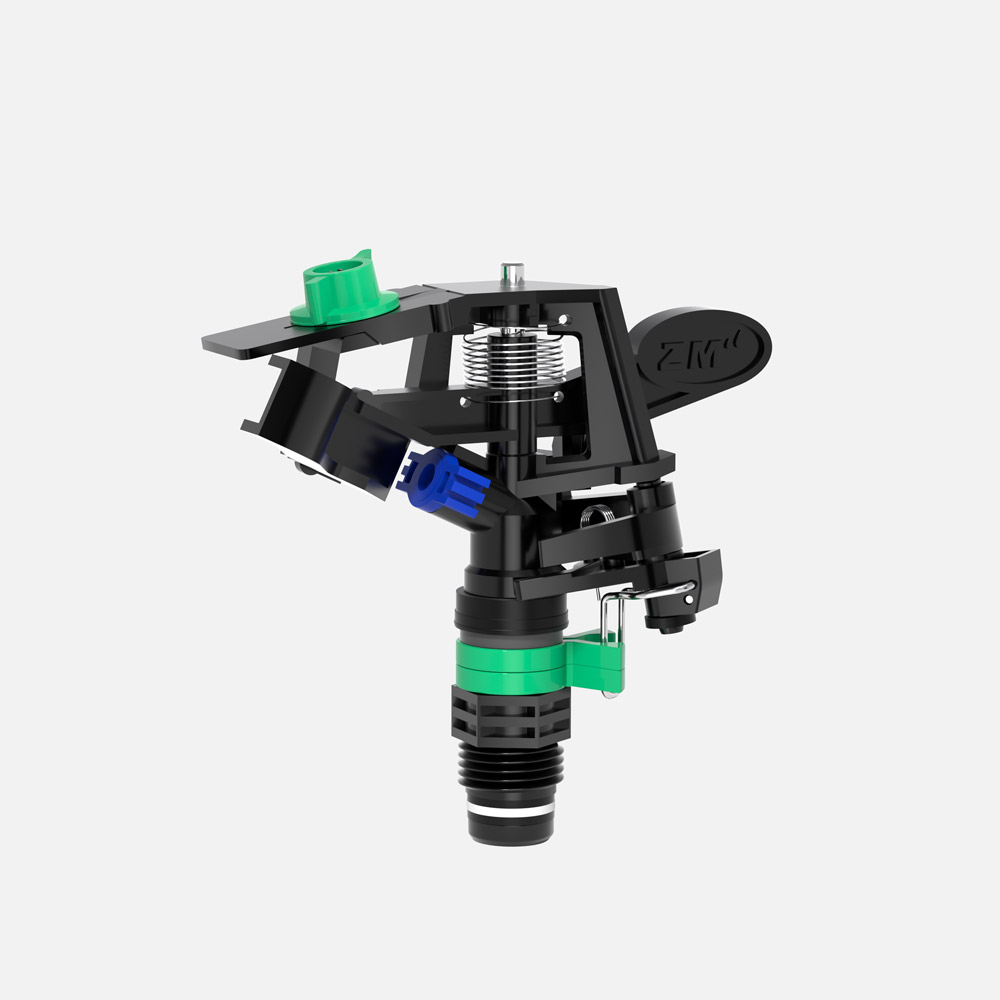

China INOVATO 8427 Impact Sprinkler Suppliers | Durable Plastic Full-Circle & Part Circle Irrigation Factory
Features
1/2" Male thread
Full-circle and part circle
Anti-tailgate drive am Stainless steel trip
Powder coated zinc die cast construction
Stainless steel springs and fulcrum pin
Operating Specifications
Working Pressure
2.0 - 4.0 bar
Flow Rate
0.45 - 1.03 m³/h
Spray Radius
11 - 13 m
Performance Data
| Nozzle Size (mm) |
Pressure (bar) |
Performance Metrics by Nozzle Type | ||||
|---|---|---|---|---|---|---|
| 2.8 (Orange) | 3.0 (Red) | 3.2 (Green) | 3.5 (Blue) | 4.0 (Black) | ||
| Standard Nozzles | 2.0 | 0.45 m³/h @ 11.0 m | 0.36 m³/h @ 9.5 m | 0.41 m³/h @ 10.0 m | 0.49 m³/h @ 10.0 m | 0.60 m³/h @ 10.5 m |
| 3.0 | 0.55 m³/h @ 11.5 m | 0.51 m³/h @ 11.5 m | 0.57 m³/h @ 11.5 m | 0.66 m³/h @ 11.5 m | 0.85 m³/h @ 12.0 m | |
| 4.0 | 0.63 m³/h @ 12.0 m | 0.63 m³/h @ 12.0 m | 0.70 m³/h @ 12.0 m | 0.81 m³/h @ 12.0 m | 1.03 m³/h @ 13.0 m | |
Frequently Asked Questions
What is the connection thread size of this sprinkler?
This sprinkler is equipped with a standard 1/2" Male thread connection, ensuring compatibility with most standard irrigation systems.
Can this sprinkler be adjusted for partial coverage?
Yes, the sprinkler supports both full-circle (360°) and part-circle irrigation coverage, allowing you to customize the spray area according to your landscape layout.
What is the recommended operating pressure?
The optimal working pressure for this sprinkler ranges from 2.0 to 4.0 bar. Operating within this range ensures proper rotation and uniform water distribution.
What materials are used to construct this sprinkler?
It features a robust powder-coated zinc die-cast body, paired with high-quality stainless steel springs, a stainless steel trip, and a stainless steel fulcrum pin for superior durability and corrosion resistance.
How does the nozzle size affect the flow rate and spray radius?
Flow rate and radius scale with nozzle size and pressure. For instance, a 2.8mm (Orange) nozzle delivers a 0.45 m³/h flow rate with an 11m radius at 2 bar, while a 4.0mm (Black) nozzle yields a 1.03 m³/h flow rate with a 13m radius at 4 bar.
