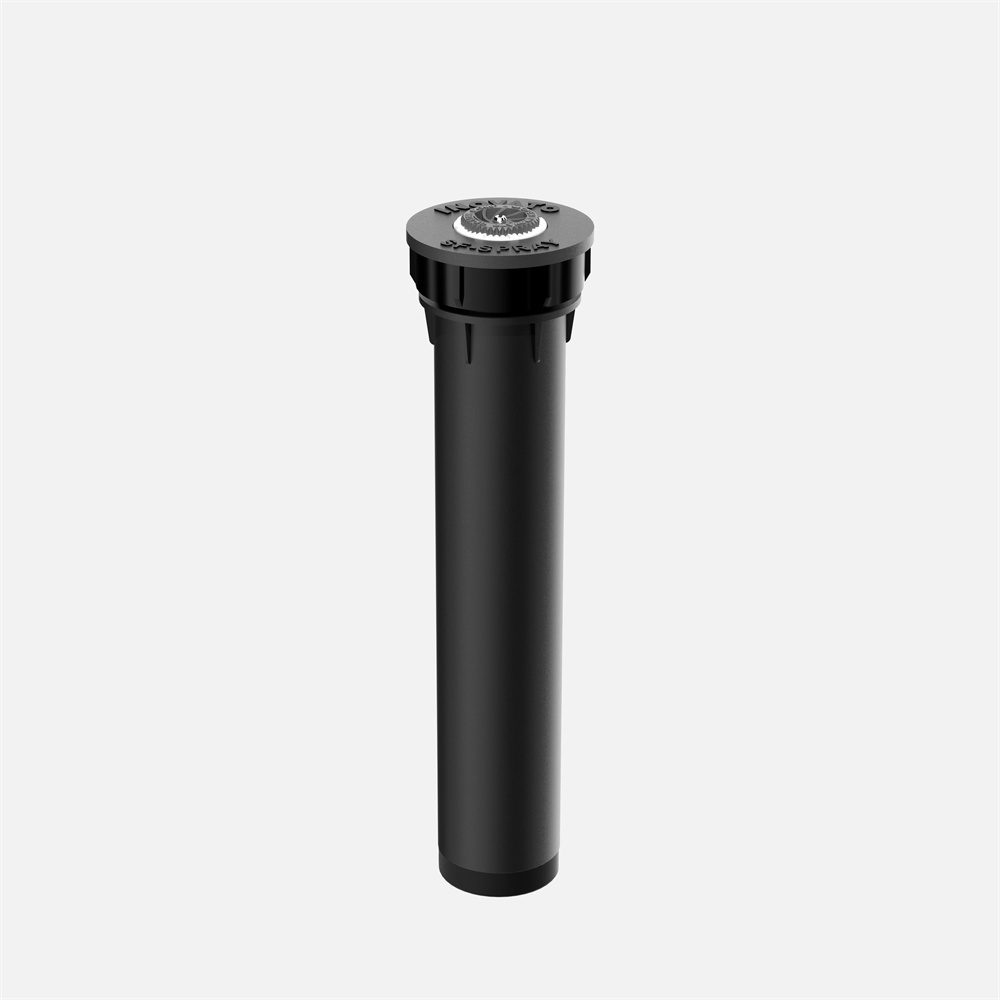

SF06 Sprinklers & Accessories03.jpg
SF04 Sprinklers & Accessories02.jpg

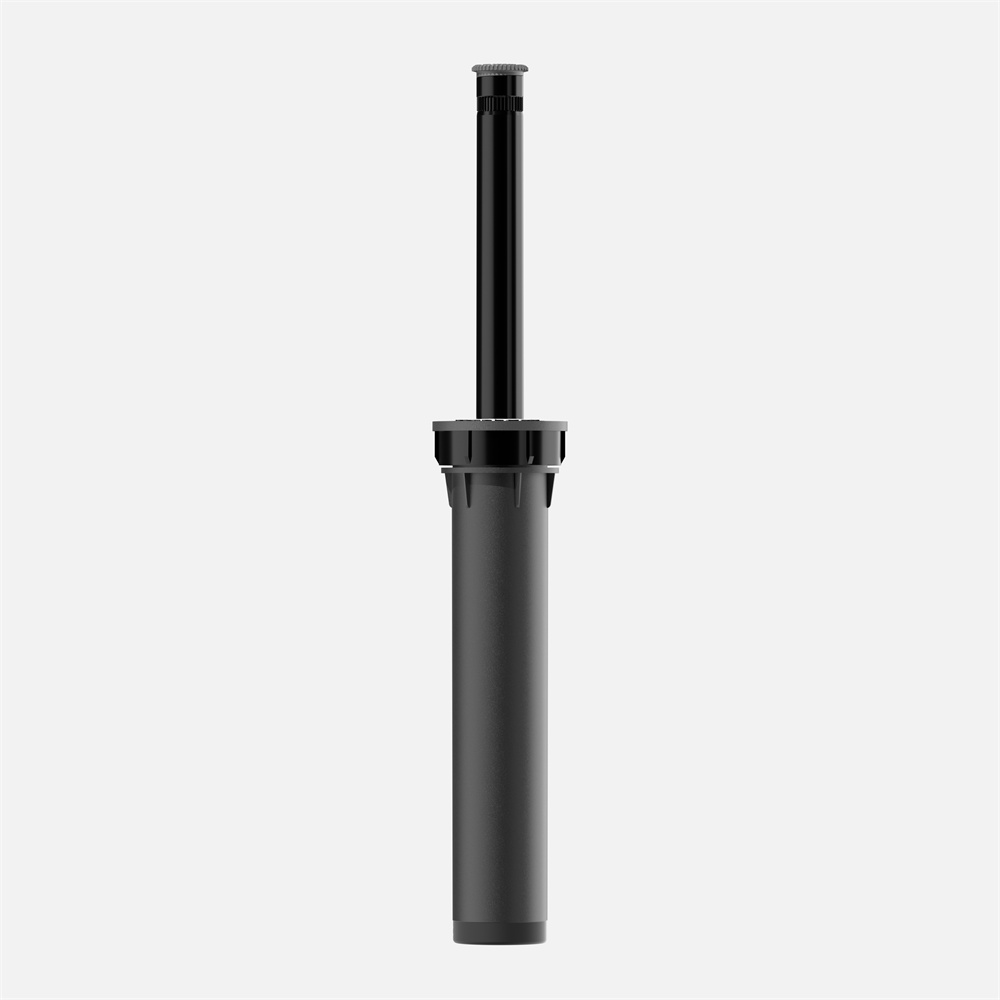

SF06 Sprinklers & Accessories01.jpg

INOVATO SF06 Sprinklers & Accessories - 6 Pop-Up Irrigation System from China Suppliers & Factory

,

Brand: INOVATO

,

Product Model: SF06, SF06-SI

,

Description: Introducing the INOVATO SF Sprinkler Body, featuring a 6 pop-up design with a 1/2 inlet. This versatile sprinkler is available with or without a side inlet and is compatible with female thread nozzles, making it an ideal choice for efficient water distribution.

,

Applications: Perfectly suited for a variety of applications, including turfgrass, shrubs, and garden areas, the SF06 series is designed to enhance your irrigation system. As a trusted product from leading suppliers in China, this sprinkler body is produced by experienced manufacturers in our factory, ensuring high quality and performance.

,
    Contact us
    Product Details

    Models Overview

    SF06 = 6" pop-up (no side inlet)
    SF06-SI = 6" pop-up with side inlet

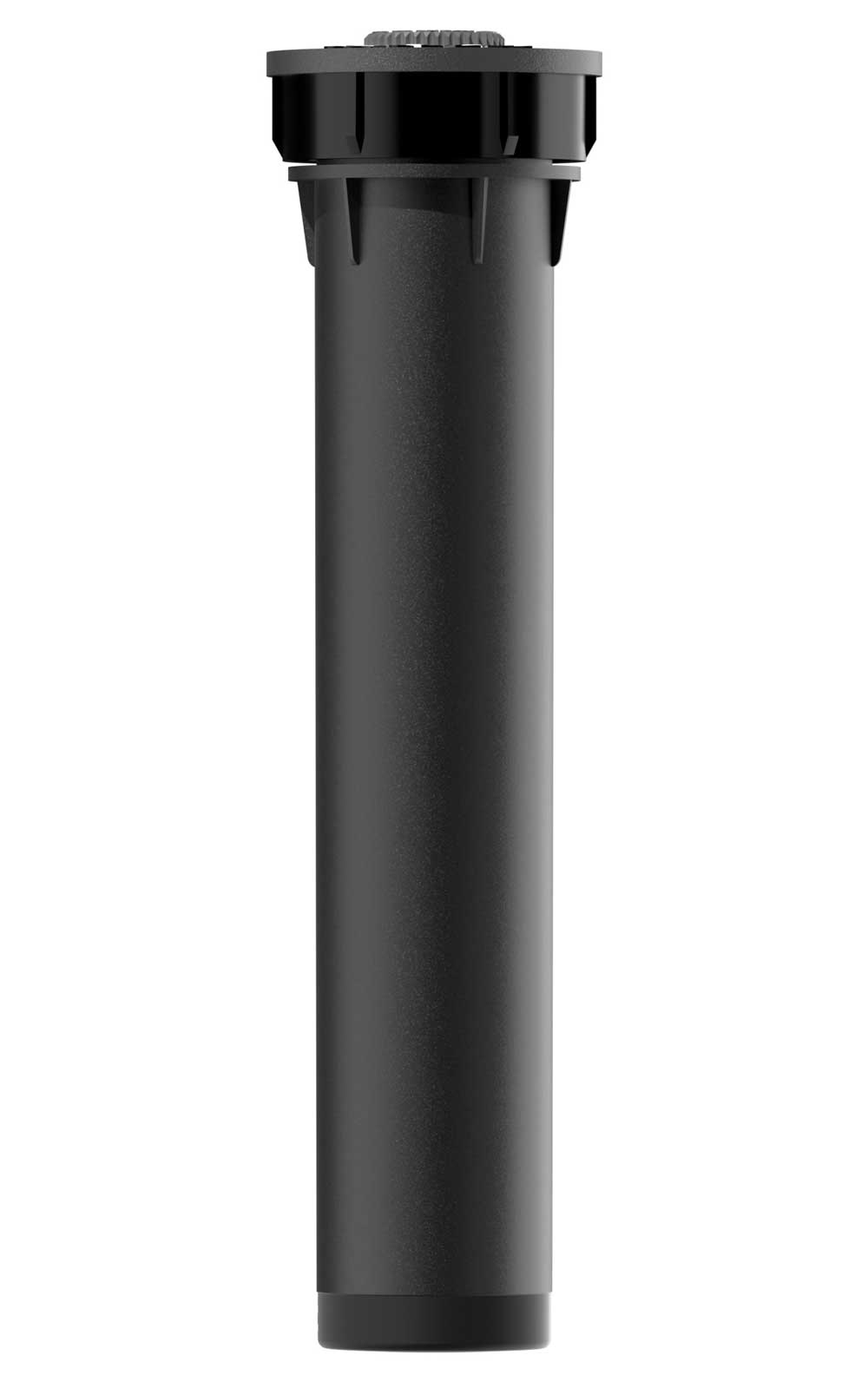

    SF06

    SF06

    SF Sprinkler Body, 6" pop-up with 1/2" inlet, without side inlet, accepts female thread nozzles

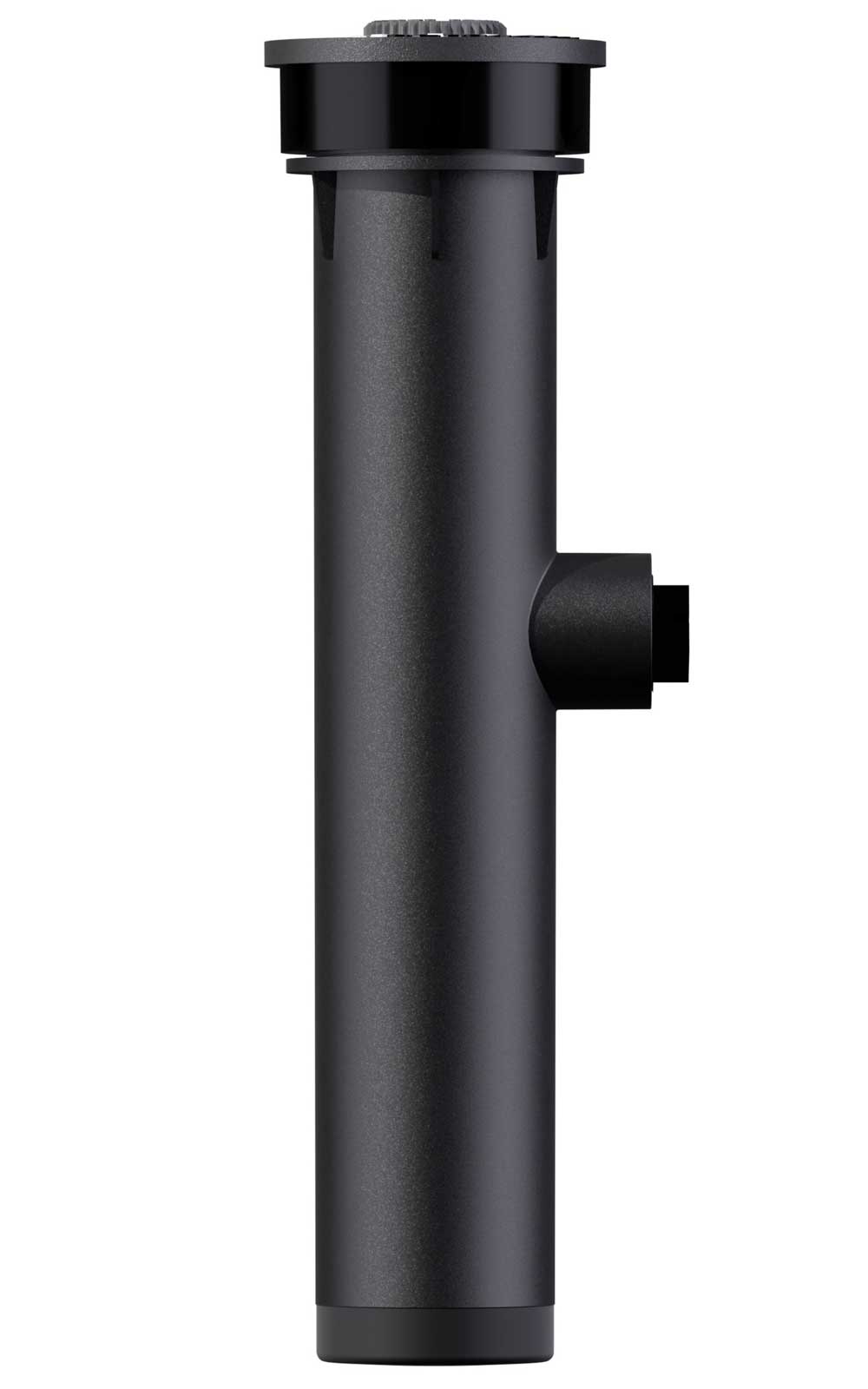

    SF06-SI

    SF06-SI

    SF Sprinkler Body, 6" pop-up with 1/2" inlet, with side inlet, accepts female thread nozzles

    Dimensions

    Overall Height 22.5cm
    Pop Up Height 15cm
    Exposure Diameter 5.7cm
    Inlet Size 1/2" Female Thread
    Side Inlet Option Without / With

    Operating Specs

    Optimum Pressure 2.1 bar
    Connection Type 1/2" Female Thread

    Key Features

    • Stronger material makes the body for years of reliable performance.
    • Constructed of durable materials including corrosion resistant stainless steel.
    • Pressure-activated wiper seal prevents excessive flow-by and water waste and keeps debris from entering upon retraction.
    • Male threaded riser to accept all lNOVATO female nozzles.

    Factory Installed Options

    FN nozzles, RF nozzles
    Flush plug
    Reclaimed water ID cap
    Drain check valve (up to 3m elevation)
    Pressure regulated options

    Frequently Asked Questions

    What is the difference between the SF06 and SF06-SI models?
    The SF06 model is a standard 6" pop-up sprinkler body without a side inlet, whereas the SF06-SI model features an integrated side inlet for alternative connection configurations.
    What is the optimum operating pressure for these sprinkler bodies?
    The optimum working pressure for the SF06 and SF06-SI sprinkler bodies is 2.1 bar.
    What type of nozzles are compatible with the SF06 series?
    The sprinkler body is designed with a male threaded riser that accepts all standard lNOVATO female thread nozzles, including FN and RF nozzles.
    How does the wiper seal help with water conservation?
    The pressure-activated wiper seal prevents excessive flow-by and water waste during operation. Additionally, it keeps debris from entering the sprinkler body upon retraction, extending the life of the unit.
    What factory options are available for elevation changes?
    A drain check valve option is available for 7.5cm, 10cm, 15cm, and 30cm models to handle elevation changes up to 3 meters, preventing low-head drainage.
